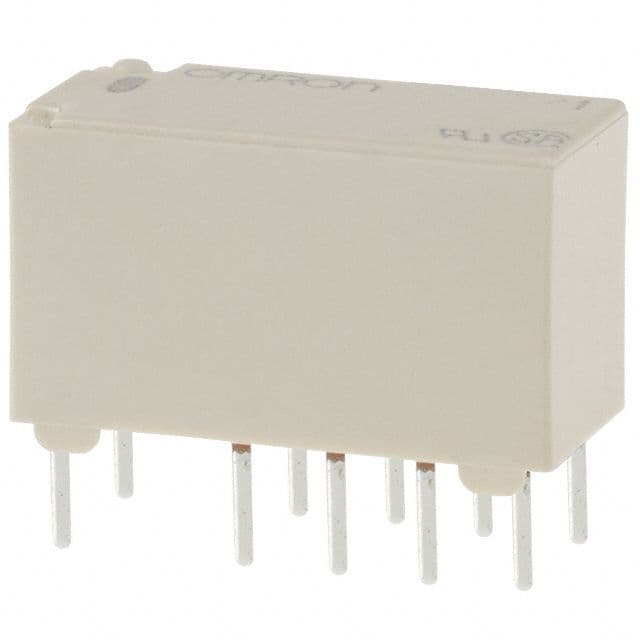

The Omron G6SK-2FDC6 is a dual coil latching relay with a contact current rating of 2A and a maximum voltage rating of 220V DC. It operates within a temperature range of -40°C to 70°C and consumes 200mW of power. The relay is surface mountable and features a DPDT throw configuration. It is compliant with RoHS regulations and is available in a packaging quantity of 50 units per rail or tube.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G6SK-2FDC6 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Coil Current | 33.3mA |
| Coil Resistance | 180R |
| Coil Type | Latching, Dual Coil |
| Coil Voltage (DC) | 6V |
| Contact Current Rating | 2A |
| Contact Material | Gold, Silver |
| Max Current Rating | 2A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 220V |
| Mount | Surface Mount |
| Operate Time | 4ms |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Consumption | 200mW |
| Radiation Hardening | No |
| Relay Type | Telecom |
| Release Time | 4ms |
| RoHS Compliant | Yes |
| Series | G6S |
| Termination | Gull Wing |
| Throw Configuration | DPDT |
| RoHS | Compliant |
Download the complete datasheet for Omron G6SK-2FDC6 to view detailed technical specifications.
