DPDT signal relay featuring a 3VDC dual-coil latching mechanism. Offers a 2A contact current rating with gold and silver contact material. Designed for PCB mounting with solder termination, this relay operates within a -40°C to 70°C temperature range and has a 200mW power consumption. RoHS compliant and lead-free, it provides 4ms operate and release times.
MountingSurface Mount
Power200mW
Quick Jump:
Technical Specifications
Omron G6SK-2GDC3 technical specifications.
General
Coil Current
66.7mA
Coil Resistance
45R
Coil Type
Latching, Dual Coil
Coil Voltage (DC)
3V
Contact Current Rating
2A
Contact Material
Gold, Silver
Lead Free
Lead Free
Max Current Rating
2A
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
220V
Mount
Surface Mount
Operate Time
4ms
Package Quantity
50
Packaging
Rail/Tube
Power Consumption
200mW
Radiation Hardening
No
Relay Type
Telecom
Release Time
4ms
RoHS Compliant
Yes
Series
G6S
Termination
Solder
Throw Configuration
DPDT
Compliance
RoHS
Compliant
Datasheet
Omron G6SK-2GDC3 Datasheet
Download the complete datasheet for Omron G6SK-2GDC3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

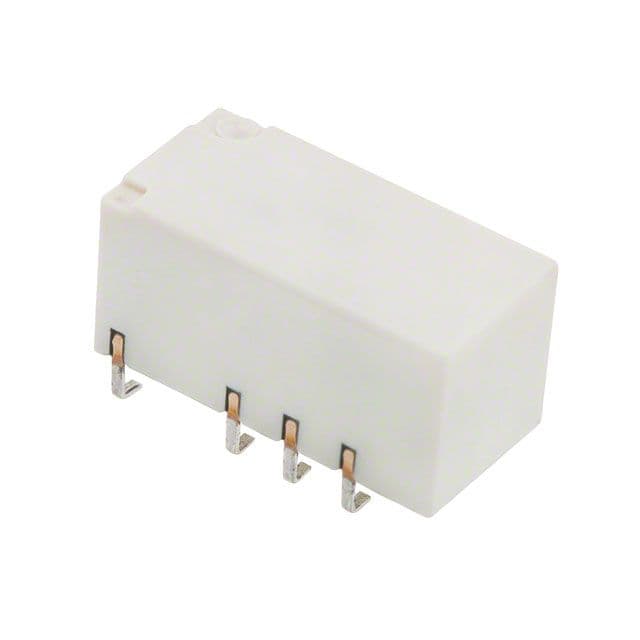

Product Images
