High-frequency signal relay featuring a 5VDC latching coil with 40mA coil current and 200mW power consumption. This SPDT relay offers a 10mA contact current rating with gold-plated copper contacts, operating at frequencies up to 2.6GHz with 0.5dB insertion loss. Designed for surface mount applications with gull wing terminals, it boasts a 30V AC/DC maximum voltage rating and operates within a -40°C to 70°C temperature range.
Frequency2.6GHz
MountingSurface Mount
Power200mW
Quick Jump:
Technical Specifications
Omron G6ZU1FEDC5 technical specifications.
General
| Coil Current | 40mA |
| Coil Power | 200mW |
| Coil Resistance | 125R |
| Coil Type | Latching, Single Coil |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 10mA |
| Contact Material | Copper, Gold |
| Frequency | 2.6GHz |
| Insertion Loss | 0.5dB |
| Max Current Rating | 500mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 30V |
| Max Voltage Rating (DC) | 30V |
| Mount | Surface Mount |
| Operate Time | 10ms |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Power Consumption | 200mW |
| Radiation Hardening | No |
| Release Time | 10ms |
| Series | G6Z |
| Termination | Gull Wing |
| Throw Configuration | SPDT |
Compliance
| RoHS | Compliant |
Datasheet
Omron G6ZU1FEDC5 Datasheet
Download the complete datasheet for Omron G6ZU1FEDC5 to view detailed technical specifications.
No datasheet is available for this part.

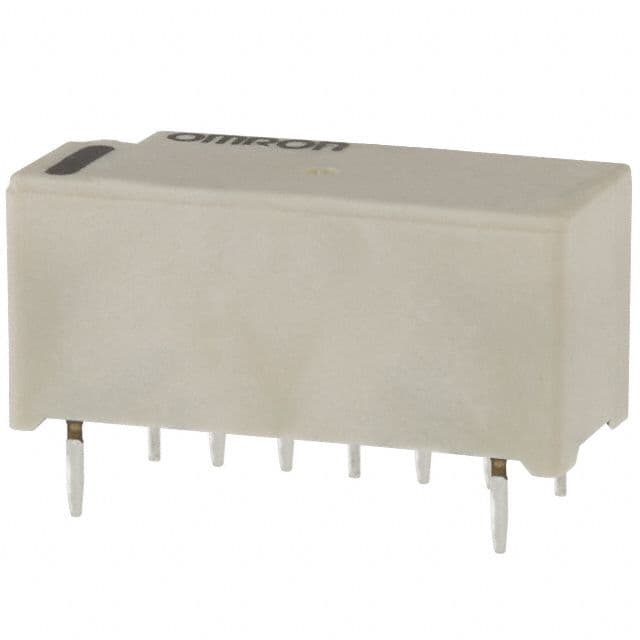

Product Images
