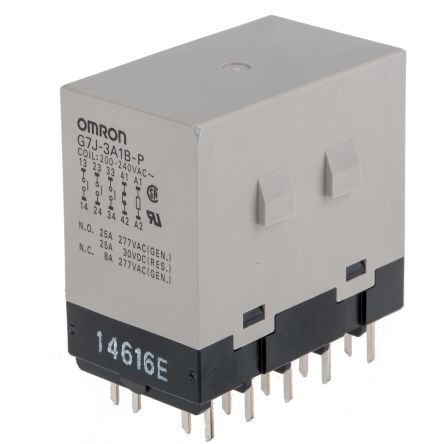

The Omron G7J-3A1B-PAC200/240 relay is a general-purpose relay with a non-latching coil type and silver contacts. It has a maximum operating temperature of 60°C and a minimum operating temperature of -25°C. The relay is rated for 25A contact current and has a maximum voltage rating of 250V AC and 125V DC. It is packaged in bulk and has a power consumption of 2.6W.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G7J-3A1B-PAC200/240 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Coil Current | 10.8mA |
| Coil Type | Non-Latching |
| Coil Voltage (AC) | 240V |
| Contact Current Rating | 25A |
| Contact Material | Silver |
| Height | 51mm |
| Length | 51.5mm |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 125V |
| Mount | Through Hole |
| Operate Time | 50ms |
| Package Quantity | 1 |
| Packaging | Bulk |
| Power Consumption | 2.6W |
| Relay Type | General Purpose |
| Release Time | 50ms |
| Series | G7J |
| Termination | PC Pin |
| Throw Configuration | SPST, 3PST, 4PST |
| Width | 33.5mm |
| RoHS | Compliant |
