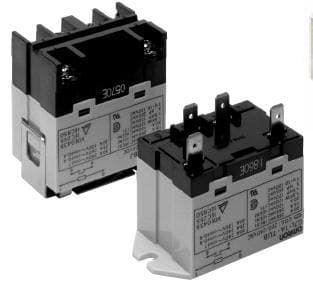

General purpose power relay with SPST throw configuration, rated for 30A contact current and 250V AC maximum voltage. Features a non-latching 24V AC coil with 71mA coil current and 303 Ohm coil resistance, consuming 2.5W. Contact material is silver/tin, and it offers screw termination with bracket/chassis mount options. Operates within a temperature range of -25°C to 60°C, with 30ms operate and release times. RoHS compliant and lead-free.
MountingBrackets, Chassis Mount
Power2.5W
Quick Jump:
Technical Specifications
Omron G7L-1A-BUB-CB-AC24 technical specifications.
General
| Coil Current | 71mA |
| Coil Resistance | 303R |
| Coil Type | Non-Latching |
| Coil Voltage (AC) | 24V |
| Contact Current Rating | 30A |
| Contact Material | Silver, Tin |
| Lead Free | Lead Free |
| Max Current Rating | 30A |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Brackets, Chassis Mount |
| Operate Time | 30ms |
| Package Quantity | 20 |
| Packaging | Bulk |
| Power Consumption | 2.5W |
| Radiation Hardening | No |
| Relay Type | General Purpose |
| Release Time | 30ms |
| RoHS Compliant | Yes |
| Series | G7L |
| Termination | Screw |
| Throw Configuration | SPST |
| Weight | 3.527396oz |
Compliance
| RoHS | Compliant |
