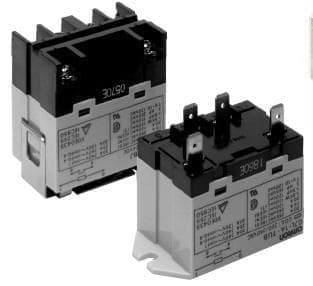

General purpose SPST power relay featuring a 12V DC non-latching coil with 158mA coil current and 75Ω coil resistance. Offers a robust 30A contact current rating with silver and tin contact material, suitable for AC voltage up to 250V. Designed for chassis or panel mounting via flanges, with screw termination and a 30ms operate/release time. Operates within a temperature range of -25°C to 60°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G7L-1A-BUB-J-CB-DC12 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Coil Current | 158mA |
| Coil Resistance | 75R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 30A |
| Contact Material | Silver, Tin |
| Current Rating | 30A |
| Depth | 34.5mm |
| Height | 49mm |
| Lead Free | Lead Free |
| Length | 50.5mm |
| Max Current Rating | 30A |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Flanges, Chassis Mount, Panel, Brackets |
| Operate Time | 30ms |
| Package Quantity | 20 |
| Packaging | Bulk |
| Power Consumption | 1.9W |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| Release Time | 30ms |
| Series | G7L |
| Termination | Screw |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 250V |
| Weight | 3.527396oz |
| Width | 34.5mm |
| RoHS | Compliant |
