MountingThrough Hole
Power1.9W
Quick Jump:
Technical Specifications
Omron G7L-1A-P-80-CBDC48 technical specifications.
General
Coil Current
40mA
Coil Power
1.9W
Coil Resistance
1.22kR
Coil Type
Non-Latching
Coil Voltage (DC)
48V
Contact Current Rating
20A
Contact Material
Silver, Tin
Max Current Rating
20A
Max Operating Temperature
60°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Through Hole
Operate Time
30ms
Package Quantity
20
Packaging
Bulk
Power Consumption
1.9W
Radiation Hardening
No
Relay Type
General Purpose
Release Time
30ms
Series
G7L
Termination
PC Pin
Throw Configuration
SPST
Weight
3.527396oz
Compliance
RoHS
Compliant
Datasheet
Omron G7L-1A-P-80-CBDC48 Datasheet
Download the complete datasheet for Omron G7L-1A-P-80-CBDC48 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

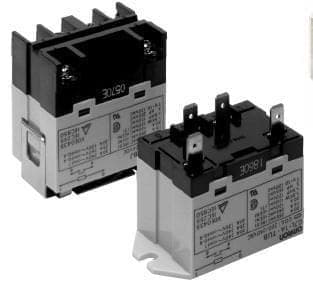

Product Images
