General purpose power relay featuring a 12V DC coil with 158mA coil current and 1.9W coil power. SPST throw configuration offers a 30A contact current rating with silver, tin, and cadmium contact material. Rated for 250V AC maximum, this relay operates within a temperature range of -25°C to 60°C and boasts a 30ms operate and release time. Mounting options include brackets, chassis, panel, and flanges, with quick connect termination.
Current Rating30A
MountingBrackets, Chassis Mount, Panel, Flanges
Power1.9W
Quick Jump:
Technical Specifications
Omron G7L-1A-T-J-CB-DC12 technical specifications.
General
| Application(s) | GENERAL PURPOSE |
| Approvals | UL, CSA, CE |
| Coil Current | 158mA |
| Coil Power | 1.9W |
| Coil Resistance | 75R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 30A |
| Contact Material | Silver, Tin, Cadmium |
| Current Rating | 30A |
| Depth | 33.5mm |
| Height | 53mm |
| Lead Free | Lead Free |
| Length | 52.5mm |
| Life (Hours) | 100000Hour |
| Max Current Rating | 30A |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Brackets, Chassis Mount, Panel, Flanges |
| Operate Time | 30ms |
| Package Quantity | 20 |
| Packaging | Bulk |
| Power Consumption | 1.9W |
| Radiation Hardening | No |
| Relay Type | General Purpose |
| Release Time | 30ms |
| Series | G7L |
| Termination | Quick Connect |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 250V |
| Weight | 3.527396oz |
| Width | 33.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron G7L-1A-T-J-CB-DC12 Datasheet
Download the complete datasheet for Omron G7L-1A-T-J-CB-DC12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

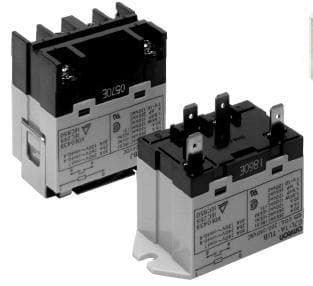

Product Images
