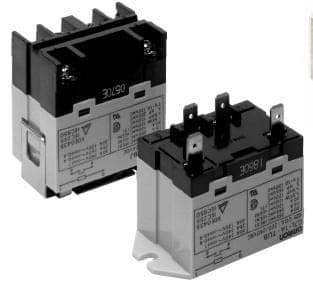

This Omron G7L-2A-BDC100 relay is a general purpose electromechanical relay with a contact current rating of 25A and a maximum voltage rating of 250V AC. It has a coil voltage of 100V DC and a coil power of 1.9W. The relay is designed for chassis mount with brackets and has a non-latching coil type. It operates within a temperature range of -25°C to 60°C and has a response time of 30ms for both operate and release times.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G7L-2A-BDC100 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Coil Current | 19mA |
| Coil Power | 1.9W |
| Coil Resistance | 5.26kR |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 100V |
| Contact Current Rating | 25A |
| Contact Material | Tin, Silver |
| Max Current Rating | 25A |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Chassis Mount, Brackets |
| Operate Time | 30ms |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Relay Type | General Purpose |
| Release Time | 30ms |
| RoHS Compliant | Yes |
| Series | G7L |
| Termination | Screw |
| Throw Configuration | DPST |
| Weight | 3.527396oz |
| RoHS | Compliant |
