DPST-NO power relay with a 25A contact current rating and 250VAC voltage rating. Features a 24VAC coil voltage, 2.5W coil power, and 303 Ohm coil resistance. Constructed with silver and tin contact material for durability. Operates within a temperature range of -20°C to 60°C and offers a mechanical life of 100,000 hours. Suitable for general purpose applications and mounts via brackets or panel. RoHS compliant with UL, CSA, and CE approvals.
Current Rating25A
MountingBrackets, Panel
Power2.5W
Quick Jump:
Technical Specifications
Omron G7L-2A-BUBJ-CB-AC24 technical specifications.
General
| Application(s) | GENERAL PURPOSE |
| Approvals | UL, CSA, CE |
| Coil Current | 71mA |
| Coil Power | 2.5W |
| Coil Resistance | 303R |
| Coil Type | Non-Latching |
| Coil Voltage (AC) | 24V |
| Contact Current Rating | 25A |
| Contact Material | Silver, Tin |
| Current Rating | 25A |
| Depth | 34.5mm |
| Height | 53mm |
| Length | 52.5mm |
| Life (Hours) | 100000Hour |
| Max Current Rating | 25A |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Brackets, Panel |
| Package Quantity | 20 |
| Packaging | Bulk |
| Power Consumption | 2.5W |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | G7L(STANDARD) |
| Termination | Screw |
| Throw Configuration | DPST |
| Voltage Rating (AC) | 250V |
| Weight | 3.527396oz |
| Width | 33.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron G7L-2A-BUBJ-CB-AC24 Datasheet
Download the complete datasheet for Omron G7L-2A-BUBJ-CB-AC24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

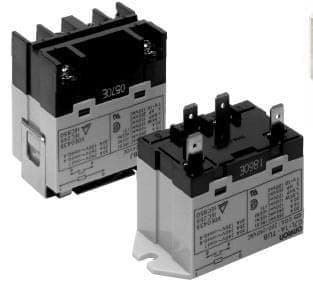

Product Images
