General Purpose Relays 25A GP RY 2A SC REW PNL TEST
MountingChassis Mount, Brackets
Quick Jump:
Technical Specifications
Omron G7L-2A-BUBJ-CBDC110 technical specifications.
General
| Coil Current | 17.3mA |
| Coil Power | 1.9W |
| Coil Resistance | 75R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 110V |
| Contact Current Rating | 25A |
| Contact Material | Tin, Silver |
| Max Current Rating | 25A |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Chassis Mount, Brackets |
| Operate Time | 30ms |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Relay Type | General Purpose |
| Release Time | 30ms |
| Series | G7L |
| Termination | Screw |
| Throw Configuration | DPST |
| Weight | 3.527396oz |
Compliance
| RoHS | Compliant |
Datasheet
Omron G7L-2A-BUBJ-CBDC110 Datasheet
Download the complete datasheet for Omron G7L-2A-BUBJ-CBDC110 to view detailed technical specifications.
No datasheet is available for this part.

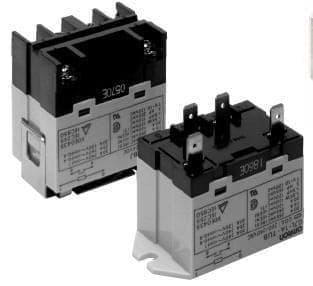

Product Images
