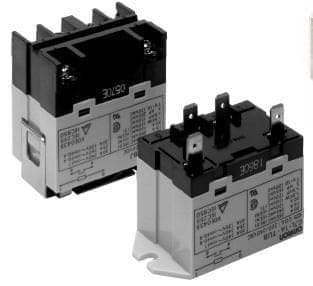

The Omron G7L-2A-P-IN-CBDC24 is a general purpose DPST relay with a contact current rating of 20A and a coil voltage of 24V. It features a non-latching coil type and a silver, tin contact material. The relay operates within a temperature range of -25°C to 60°C and has a power consumption of 1.9W. It is available in a bulk packaging with 20 units per package and can be mounted through a hole.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G7L-2A-P-IN-CBDC24 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Coil Current | 79mA |
| Coil Resistance | 303R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 20A |
| Contact Material | Silver, Tin |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Operate Time | 30ms |
| Package Quantity | 20 |
| Packaging | Bulk |
| Power Consumption | 1.9W |
| Relay Type | General Purpose |
| Release Time | 30ms |
| Series | G7L |
| Termination | PC Pin |
| Throw Configuration | DPST |
| Weight | 3.527396oz |
| RoHS | Compliant |
