MountingThrough Hole
Power2.3W
Quick Jump:
Technical Specifications
Omron G7L-2A-P-PV-DC24 technical specifications.
General
Coil Current
95.8mA
Coil Resistance
250R
Coil Type
Non-Latching
Coil Voltage (DC)
24V
Contact Current Rating
30A
Contact Material
Silver
Height
52.5mm
Length
41mm
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Mount
Through Hole
Operate Time
30ms
Package Quantity
20
Packaging
Bulk
Power Consumption
2.3W
Relay Type
General Purpose
Release Time
30ms
Series
G7L-PV
Termination
PC Pin
Throw Configuration
DPST
Width
35.5mm
Compliance
RoHS
Compliant
Datasheet
Omron G7L-2A-P-PV-DC24 Datasheet
Download the complete datasheet for Omron G7L-2A-P-PV-DC24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

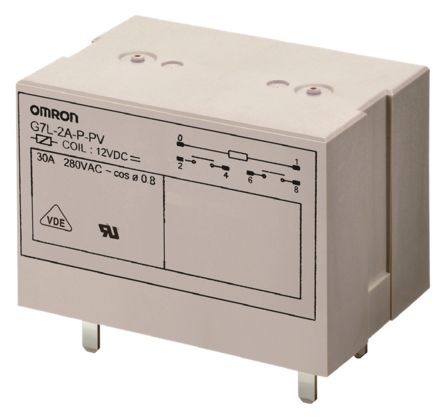

Product Images
