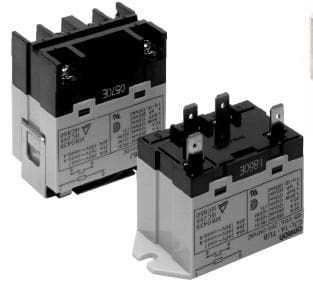

DPST general purpose power relay featuring a 25A contact current rating and 250VAC max voltage rating. Operates with a 240VAC coil voltage, 10.2mA coil current, and 21kΩ coil resistance. Offers 30ms operate and release times, with a contact material of Silver, Tin, and Cadmium. Mountable via brackets or chassis, with quick connect termination. Rated for operation between -25°C and 60°C.
Package200
MountingBrackets, Chassis Mount
Power2.5W
Quick Jump:
Technical Specifications
Omron G7L-2A-T-CB-AC200/240 technical specifications.
General
Package/Case
200
Coil Current
10.2mA
Coil Resistance
21kR
Coil Type
Non-Latching
Coil Voltage (AC)
240V
Contact Current Rating
25A
Contact Material
Silver, Tin, Cadmium
Max Current Rating
25A
Max Operating Temperature
60°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Brackets, Chassis Mount
Operate Time
30ms
Package Quantity
20
Packaging
Bulk
Power Consumption
2.5W
Radiation Hardening
No
Relay Type
General Purpose
Release Time
30ms
RoHS Compliant
Yes
Series
G7L
Termination
Quick Connect
Throw Configuration
DPST
Weight
3.527396oz
Compliance
RoHS
Compliant
Datasheet
Omron G7L-2A-T-CB-AC200/240 Datasheet
Download the complete datasheet for Omron G7L-2A-T-CB-AC200/240 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
