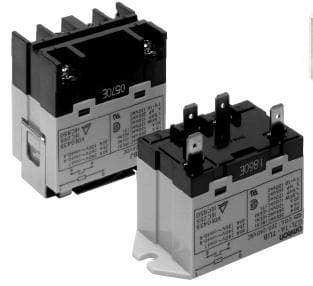

General purpose electromechanical power relay featuring a 24VDC coil with 303 Ohm resistance and 79mA coil current. DPST-NO contacts rated for 25A at 250VAC, with silver, tin, and cadmium contact material. Operates within a -25°C to 60°C temperature range, offering 30ms operate and release times. Mounting options include brackets and chassis mount, with quick connect termination. Lead-free construction and UL, CSA, CE approvals.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G7L-2A-TUB-J-CB-DC24 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron G7L-2A-TUB-J-CB-DC24 technical specifications.
| Approvals | UL, CSA, CE |
| Coil Current | 79mA |
| Coil Resistance | 303R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 25A |
| Contact Material | Silver, Tin, Cadmium |
| Current Rating | 25A |
| Depth | 33.5mm |
| Height | 53mm |
| Lead Free | Lead Free |
| Length | 52.5mm |
| Max Current Rating | 25A |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Brackets, Chassis Mount, Panel |
| Operate Time | 30ms |
| Packaging | Bulk |
| Power Consumption | 1.9W |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| Release Time | 30ms |
| Series | G7L |
| Termination | Quick Connect |
| Throw Configuration | DPST |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 24V |
| Width | 33.5mm |
| RoHS | Compliant |
Download the complete datasheet for Omron G7L-2A-TUB-J-CB-DC24 to view detailed technical specifications.
