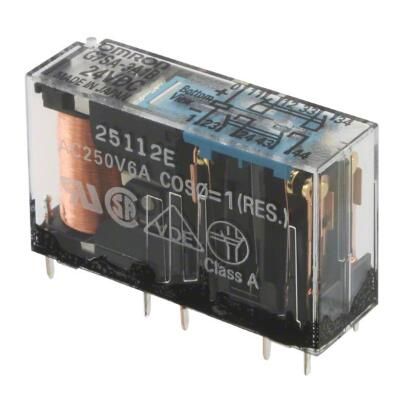

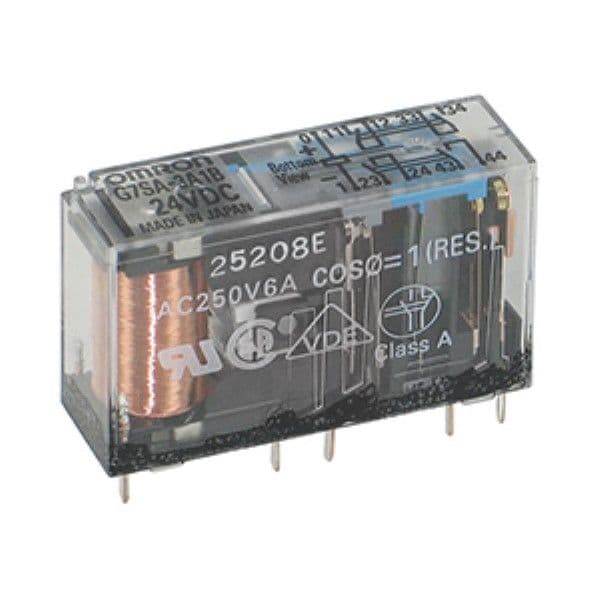

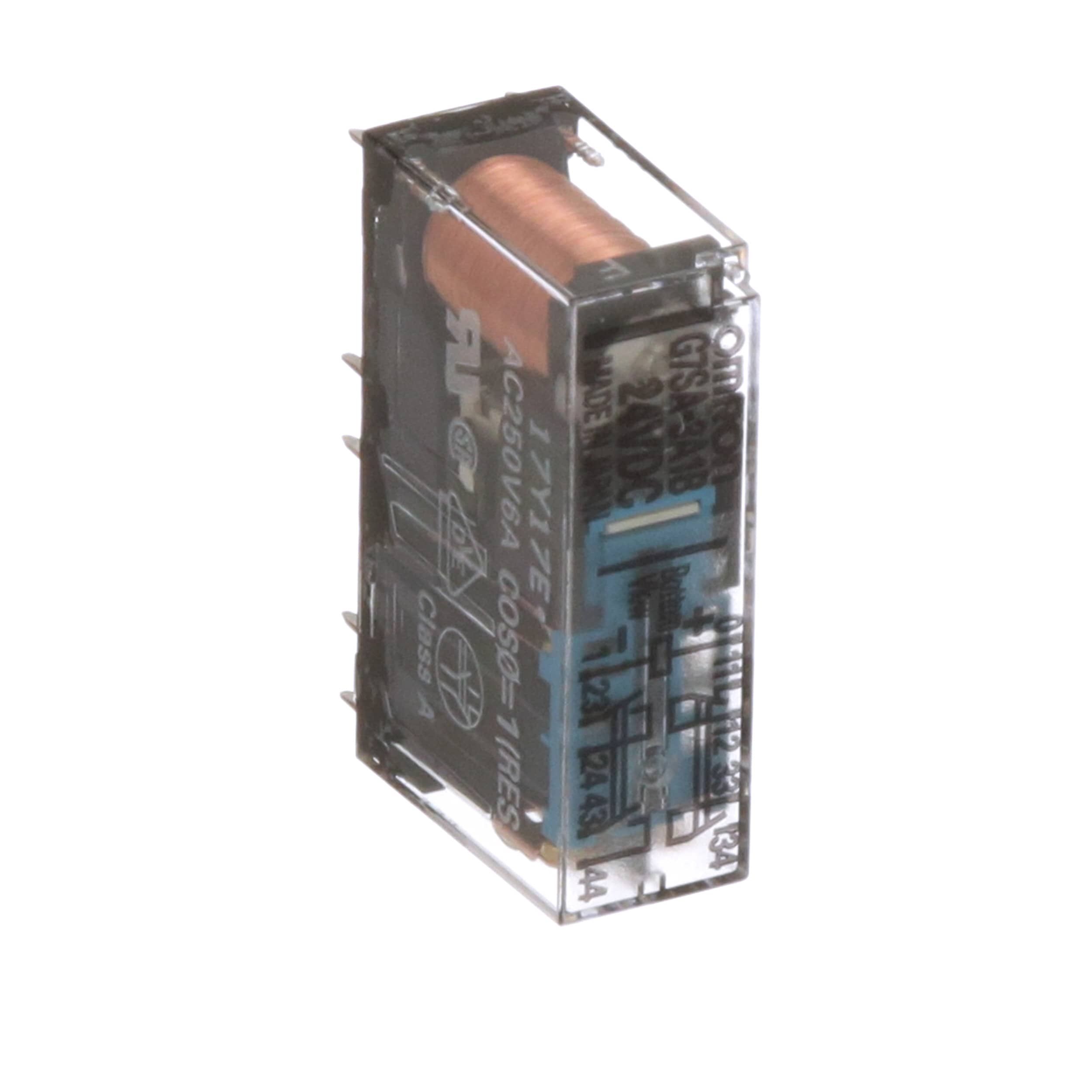

General purpose power relay featuring a 24 VDC coil voltage and 6A contact current rating. This non-latching relay offers a 3PST-NO and SPST-NC throw configuration with gold and silver contact material. Operating across a wide temperature range of -40°C to 85°C, it supports solder termination and is mountable via socketable, PCB, or through-hole methods. Approvals include UL, CSA, and VDE.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G7SA-3A1BDC24 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron G7SA-3A1BDC24 technical specifications.
| Approvals | UL, CSA, VDE |
| Coil Current | 20.83mA |
| Coil Power | 360mW |
| Coil Resistance | 1.6kR |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 6A |
| Contact Material | Gold, Silver |
| Current Rating | 6A |
| Depth | 13mm |
| Length | 40mm |
| Max Current Rating | 6A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 125V |
| Mount | Socketable, PCB, Through Hole |
| Operate Time | 20ms |
| Package Quantity | 1 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Release Time | 10ms |
| RoHS Compliant | Yes |
| Series | G7SA |
| Termination | Solder |
| Throw Configuration | SPST, 3PST, 4PST |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 24V |
| Weight | 22g |
| RoHS | Compliant |
