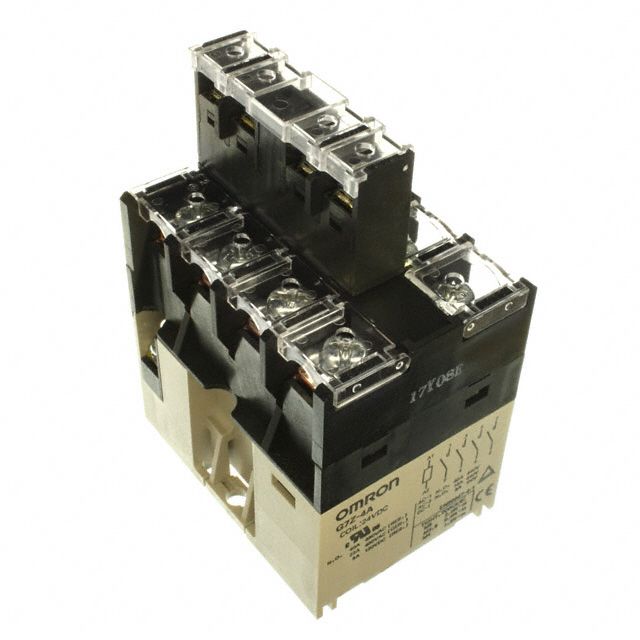

General purpose power relay featuring a 4PST (4 Form X) contact configuration and a 40A contact current rating. Operates with a 24VDC non-latching coil, drawing 154mA and consuming 3.7W. Contact material is silver/tin, suitable for AC voltage ratings up to 480V. Mounting options include DIN rail and chassis mount with screw termination. Operating temperature range is -25°C to 60°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G7Z-4A-11ZDC24 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Application(s) | POWER |
| Coil Current | 154mA |
| Coil Power | 3.7W |
| Coil Resistance | 156R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 40A |
| Contact Material | Silver, Tin |
| Depth | 45mm |
| Height | 60mm |
| Length | 62mm |
| Max Current Rating | 40A |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 480V |
| Mount | DIN Rail, Chassis Mount |
| Operate Time | 50ms |
| Package Quantity | 1 |
| Packaging | Bulk |
| Power Consumption | 3.7W |
| Relay Type | General Purpose |
| Release Time | 50ms |
| RoHS Compliant | Yes |
| Series | G7Z |
| Termination | Screw |
| Throw Configuration | 4PST, SPST |
| Width | 45mm |
| RoHS | Compliant |
