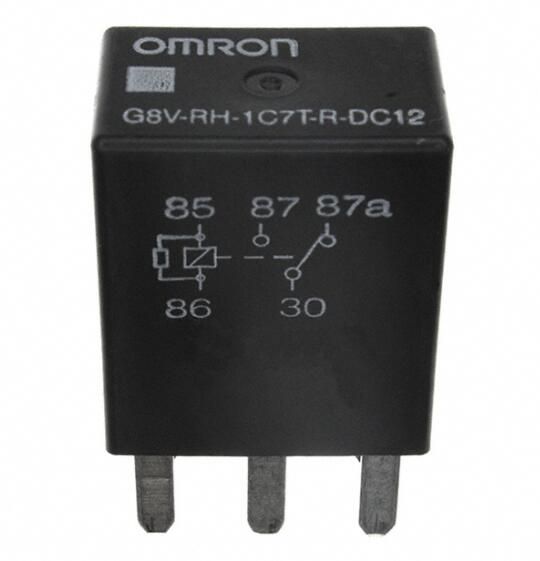

SPDT power relay featuring a 12VDC coil with 1.6W power consumption and 104Ω resistance. Offers a 10A contact current rating with Tin, Silver contact material. Designed for socketable, plug-in mounting with a 15mm width, 22.5mm length, and 25mm height. Operates within a -40°C to 125°C temperature range.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G8V-1C7T-R-DC12 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron G8V-1C7T-R-DC12 technical specifications.
| Coil Power | 1.6W |
| Coil Resistance | 104R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 10A |
| Contact Material | Tin, Silver |
| Height | 25mm |
| Lead Free | Lead Free |
| Length | 22.5mm |
| Max Current Rating | 1A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 16V |
| Mount | Socketable, Plug-In |
| Number of Poles | 1 |
| Operate Time | 10ms |
| Package Quantity | 600 |
| Packaging | Bulk |
| Power Consumption | 2.3W |
| Reach SVHC Compliant | Unknown |
| Release Time | 10ms |
| RoHS Compliant | No |
| Series | G8V |
| Termination | Plug |
| Throw Configuration | SPDT |
| Weight | 0.680787oz |
| Width | 15mm |
| RoHS | Not Compliant |
