Technical Specifications
Omron G9EA-1-B-DC24 technical specifications.
General
| Package/Case | 200 |
| Coil Current | 208mA |
| Coil Resistance | 115.2R |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 100A |
| Depth | 36mm |
| Lead Free | Lead Free |
| Length | 73mm |
| Max Current Rating | 100A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 400V |
| Mount | Flanges |
| Operate Time | 50ms |
| Operating Supply Voltage | 400V |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Termination | Screw |
| Throw Configuration | SPST |
| DC Rated Voltage | 400V |
Compliance
| RoHS | Compliant |
Datasheet
Omron G9EA-1-B-DC24 Datasheet
Download the complete datasheet for Omron G9EA-1-B-DC24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

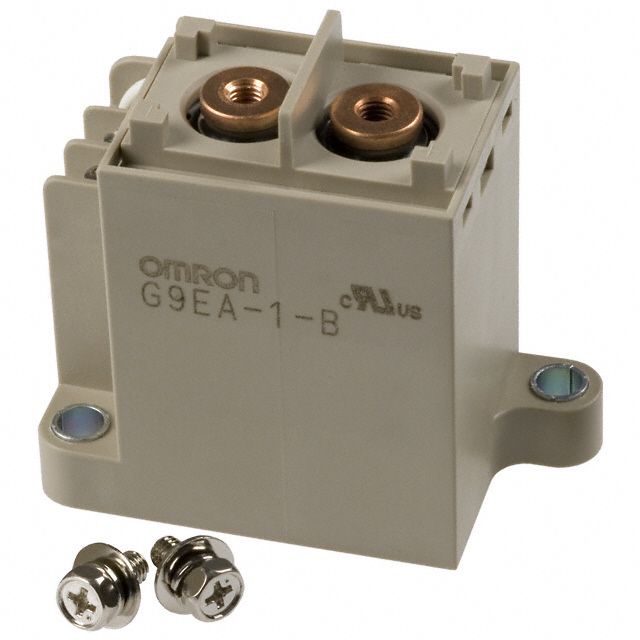

Product Images
