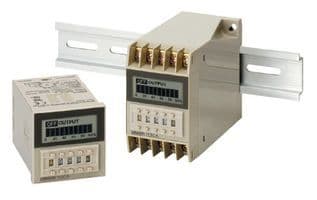

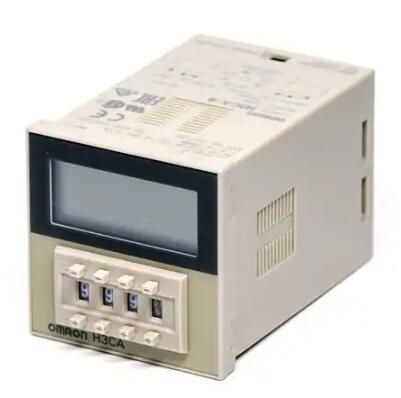

The Omron H3CA-FA is a 240V 3A SPDT time delay relay with a maximum operating temperature of 55°C and a minimum operating temperature of -10°C. It has a contact current rating of 3A and a maximum supply voltage of 240V. The relay is mounted on a DIN rail and has a termination type of screw. It is compliant with RoHS regulations and has a weight of 190g.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron H3CA-FA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Coil Voltage (AC) | 240V |
| Coil Voltage (DC) | 240V |
| Contact Current Rating | 3A |
| Depth | 45mm |
| Length | 101mm |
| Max Current Rating | 3A |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -10°C |
| Max Supply Voltage | 240V |
| Max Voltage Rating (AC) | 250V |
| Mount | DIN Rail |
| Package Quantity | 1 |
| Reach SVHC Compliant | Unknown |
| Relay Type | Integrated |
| RoHS Compliant | Yes |
| Series | H3CA |
| Termination | Screw |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 250V |
| Weight | 190g |
| RoHS | Not Compliant |
