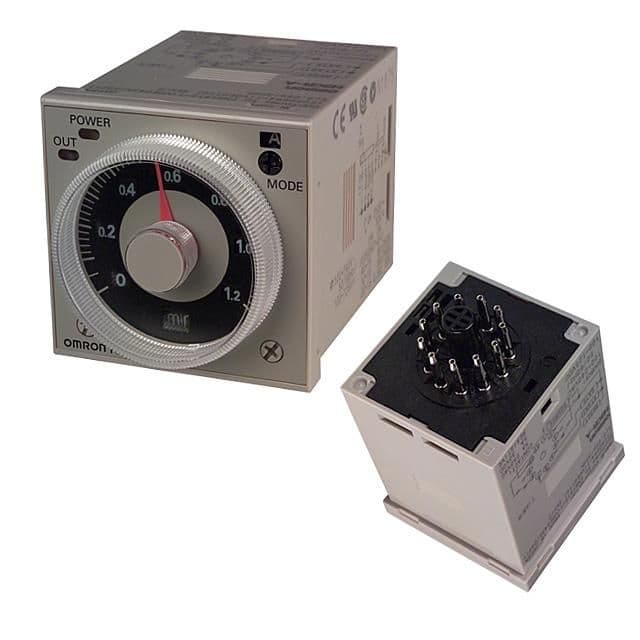

Electromechanical Multifunction Timer with 8 functions and DPDT contact configuration. Features 0.2% accuracy, 5A switching current, and a 250V AC / 30V DC maximum voltage rating. Operates with coil voltages of 240V AC or 125V DC. Offers versatile mounting options including socketable, DIN rail, flush, surface, and plug-in. Compliant with RoHS and lead-free standards, with UL, CSA, and CE approvals.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron H3CR-AAC100-240/DC100-125 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Accuracy | 0.2% |
| Approvals | UL, CSA, CE |
| Coil Voltage (AC) | 240V |
| Coil Voltage (DC) | 125V |
| Current Rating | 5A |
| Depth | 81.6mm |
| Lead Free | Lead Free |
| Length | 48mm |
| Max Current Rating | 5A |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -10°C |
| Max Supply Voltage (AC) | 240V |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 30V |
| Mount | Socketable, DIN Rail, Flush, Surface Mount, Plug-In |
| Number of Contacts | 2 |
| Number of Functions | 8 |
| Operating Supply Voltage | 240V |
| Package Quantity | 1 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | H3CR-A |
| Switching Current | 5A |
| Termination | Plug |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 125V |
| Weight | 90g |
| Width | 48mm |
| RoHS | Not Compliant |
