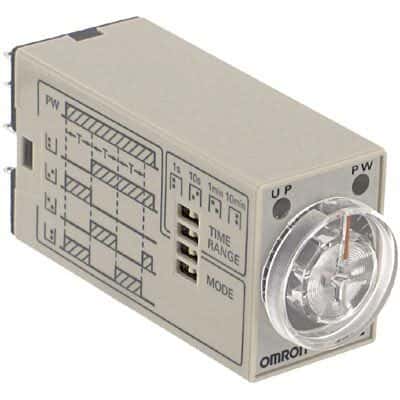

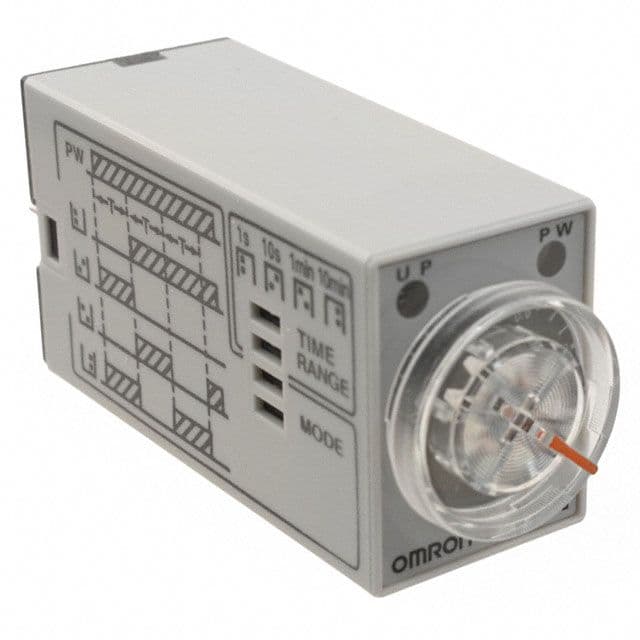

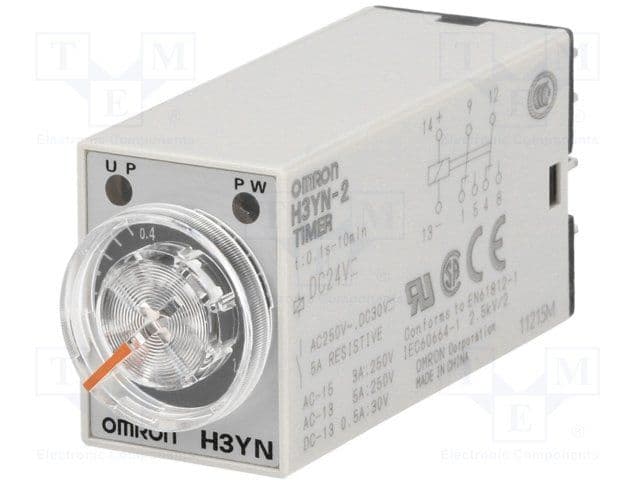

Omron H3YN-2DC24 technical specifications.
| Approvals | UL, CSA |
| Coil Voltage (DC) | 24V |
| Depth | 63mm |
| Interface | Analog |
| Length | 28mm |
| Max Current Rating | 5A |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | -10°C |
| Max Supply Voltage (DC) | 24V |
| Max Voltage Rating (AC) | 250V |
| Mount | Socketable, DIN Rail, Flush, Panel, Plug-In |
| Number of Contacts | 2 |
| Operating Supply Voltage | 24V |
| Package Quantity | 1 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | H3YN |
| Termination | Plug |
| Throw Configuration | DPDT |
| Weight | 50g |
| Width | 21.5mm |
| RoHS | Not Compliant |
