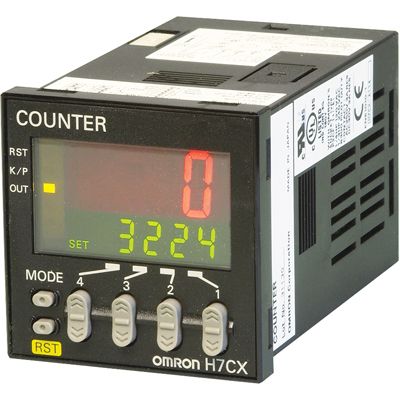

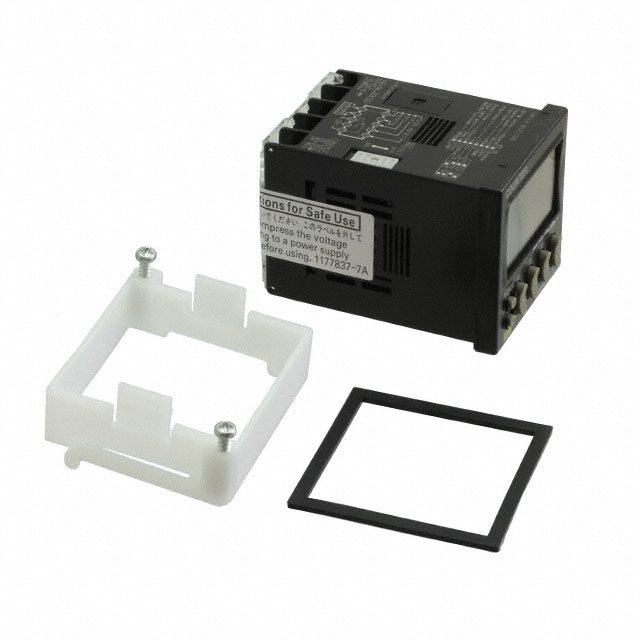

This Omron H7CX-A4D-N-DC1224 is a 24V electromechanical counter relay with a bidirectional counting capability and an LCD display. It features a transmissive interface and a programmable reset function accessible from the front panel or externally. The device is rated for operation between -10°C and 55°C and is compliant with IP66, making it suitable for use in harsh environments. The relay has a flush mount design and a screw termination. It is a single unit with a weight of 130g.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron H7CX-A4D-N-DC1224 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Accuracy | 0.1% |
| Count Direction | Bidirectional |
| Display Type | LCD |
| Interface | Transmissive |
| Logic Function | Counter |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -10°C |
| Mount | Panel, Flush |
| Number of Inputs | 4 |
| Operating Supply Voltage | 24V |
| Output Type | RELAY |
| Package Quantity | 1 |
| Ratings | IP66, Water Resistant, Dust Tight |
| Reset | Programmable, Front Panel , External |
| Series | H7CX |
| Termination | Screw |
| Weight | 130g |
| RoHS | Compliant |
Download the complete datasheet for Omron H7CX-A4D-N-DC1224 to view detailed technical specifications.
