Programmable and fixed time delay relay featuring an 8-character LCD display. Offers a wide operating voltage range of 24V to 240V AC/DC and a logic function as a counter. Designed for panel or flush mounting with screw termination, this black housing unit boasts IP66, water-resistant, and dust-tight ratings. Operating temperature range is -10°C to 55°C, with front panel and external reset capabilities.
Voltage24V
MountingPanel, Flush
Quick Jump:
Technical Specifications
Omron H7EC-NFV-B technical specifications.
General
| Approvals | CSA, UL, CE |
| Depth | 48.5mm |
| Display Type | LCD |
| Housing Color | Black |
| Lead Free | Contains Lead |
| Length | 48.5mm |
| Logic Function | Counter |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -10°C |
| Max Supply Voltage | 240V |
| Min Supply Voltage | 24V |
| Mount | Panel, Flush |
| Number Of Characters Per Row | 8 |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP66, Water Resistant, Dust Tight |
| Reach SVHC Compliant | Unknown |
| Reset | Front Panel , External |
| Series | H7EC |
| Termination | Screw |
| Voltage | 24V |
| Weight | 0.198lb |
| Width | 48mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron H7EC-NFV-B Datasheet
Download the complete datasheet for Omron H7EC-NFV-B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

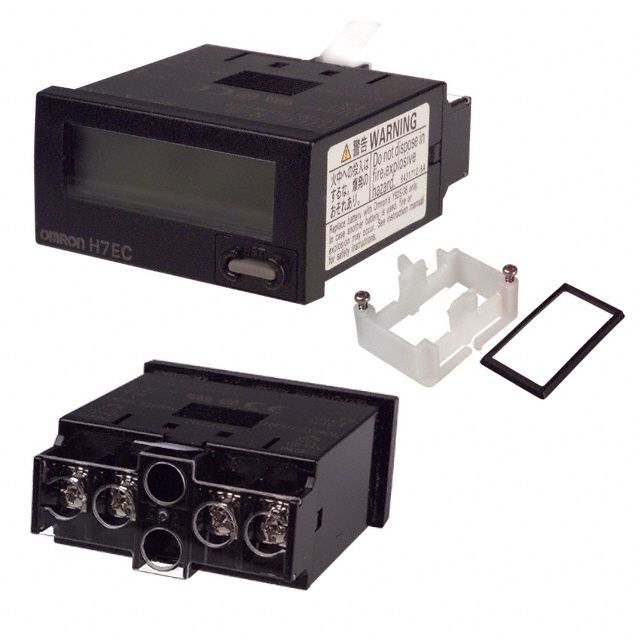

Product Images
