Programmable time delay relay featuring an LCD display with 7 characters per row. Operates on AC supply voltages from 24V to 240V, with a maximum operating temperature of 55°C and a minimum of -10°C. This panel-mount relay, with dimensions of 48.5mm (length) x 48mm (width) x 35mm (depth), offers front panel and external reset functionality. It is RoHS compliant and rated IP66 for water resistance and dust tightness, with UL, CSA, and CE approvals.
MountingPanel, Flush
Quick Jump:
Technical Specifications
Omron H7ET-NFV-B technical specifications.
General
| Approvals | UL, CSA, CE |
| Depth | 35mm |
| Display Type | LCD |
| Height | 23.9mm |
| Lead Free | Contains Lead |
| Length | 48.5mm |
| Logic Function | Counter |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -10°C |
| Max Supply Voltage (AC) | 240V |
| Min Supply Voltage (AC) | 24V |
| Mount | Panel, Flush |
| Number Of Characters Per Row | 7 |
| Operating Supply Voltage | 240V |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP66, Water Resistant, Dust Tight |
| Reach SVHC Compliant | Unknown |
| Reset | Front Panel , External |
| RoHS Compliant | Yes |
| Series | H7ET |
| Termination | Screw |
| Weight | 60g |
| Width | 48mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Omron H7ET-NFV-B Datasheet
Download the complete datasheet for Omron H7ET-NFV-B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

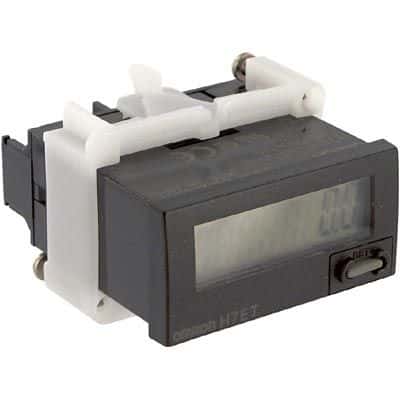

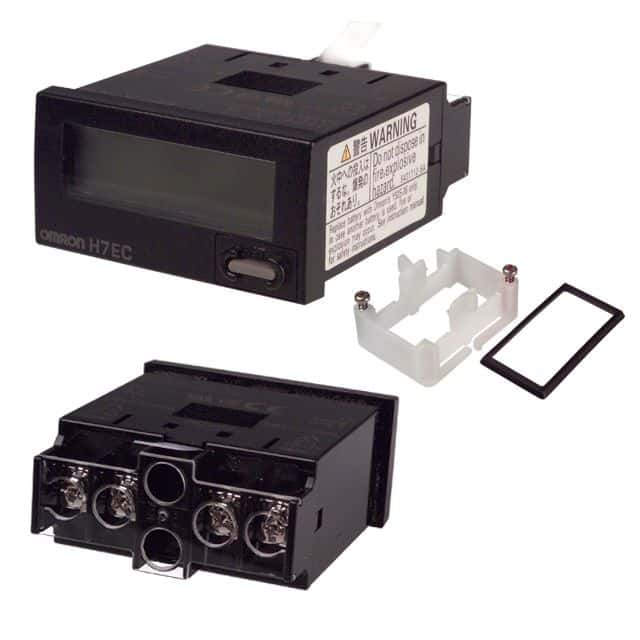

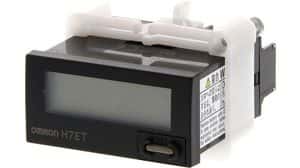

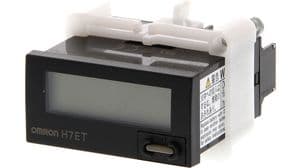

Product Images
