General purpose SPDT power relay with a 15A contact current rating and 250VAC/125VDC voltage rating. Features a 24VDC non-latching coil with 900mW power consumption and 650 Ohm resistance. Contact material is silver, with a mechanical life of 200,000 hours. Mounting options include flanges, chassis mount, socket, and surface mount. Approvals include UL, CSA, and VDE.
Current Rating15A
MountingFlanges, Chassis Mount, Socket, Surface Mount
Power900mW
Quick Jump:
Technical Specifications
Omron LY1F-DC24 technical specifications.
General
| Approvals | UL, CSA, VDE |
| Coil Current | 36.9mA |
| Coil Power | 900mW |
| Coil Resistance | 650R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 15A |
| Contact Material | Silver |
| Current Rating | 15A |
| Depth | 22.5mm |
| Height | 35.56mm |
| Lead Free | Lead Free |
| Length | 44mm |
| Life (Hours) | 200000Hour |
| Max Current Rating | 15A |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 125V |
| Mount | Flanges, Chassis Mount, Socket, Surface Mount |
| Operate Time | 25ms |
| Package Quantity | 1 |
| Packaging | Bulk |
| Power Consumption | 900mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| Release Time | 25ms |
| RoHS Compliant | Yes |
| Series | LY |
| Termination | Quick Connect |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 125V |
| Width | 22.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron LY1F-DC24 Datasheet
Download the complete datasheet for Omron LY1F-DC24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

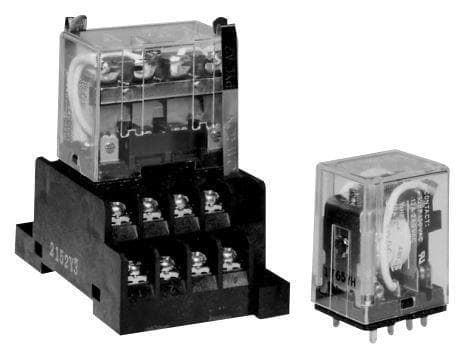

Product Images
