DPDT general purpose power relay with a 10A contact current rating and silver contacts. Features a 220VAC coil voltage, 4.6mA coil current, and 18.79kΩ coil resistance. Operates within a -25°C to 55°C temperature range and offers a 250VAC/125VDC maximum voltage rating. Socketable mounting with plug-in termination. RoHS compliant and lead-free.
Current Rating10A
MountingSocketable, Socket, Plug-In
Quick Jump:
Technical Specifications
Omron LY2-AC220/240 technical specifications.
General
| Approvals | UL, CSA, VDE |
| Coil Current | 4.6mA |
| Coil Resistance | 18.79kR |
| Coil Type | Non-Latching |
| Coil Voltage (AC) | 220V |
| Contact Current Rating | 10A |
| Contact Material | Silver |
| Current Rating | 10A |
| Depth | 21.5mm |
| Height | 36.06mm |
| Lead Free | Lead Free |
| Length | 21.59mm |
| Life (Hours) | 500000Hour |
| Max Current Rating | 10A |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 125V |
| Mount | Socketable, Socket, Plug-In |
| Mounting Style | SOCKET |
| Operate Time | 25ms |
| Package Quantity | 1 |
| Packaging | Tray |
| Radiation Hardening | No |
| Relay Type | General Purpose |
| Release Time | 25ms |
| RoHS Compliant | Yes |
| Series | LY |
| Termination | Plug |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 250V |
| Width | 27.94mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron LY2-AC220/240 Datasheet
Download the complete datasheet for Omron LY2-AC220/240 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

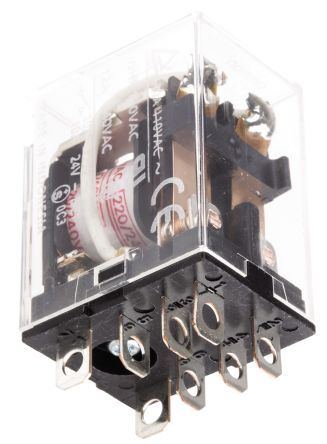

Product Images
