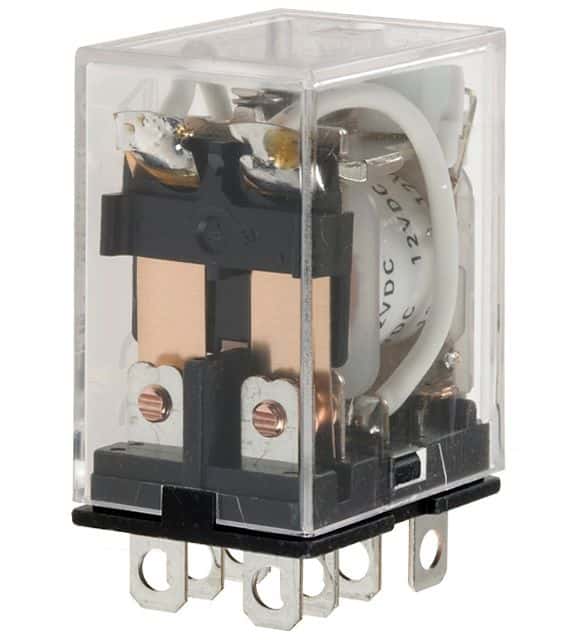

DPDT General Purpose Power Relay with a 10A contact current rating and Silver contact material. Features a 12V DC non-latching coil with 75mA coil current, 900mW coil power, and 160 Ohm coil resistance. Operates within a -25°C to 55°C temperature range, offering 25ms operate and release times. Socketable mounting with Quick Connect termination, rated for 250VAC and 125VDC. Approvals include UL, CSA, and VDE, with RoHS compliance.
Current Rating10A
MountingSocketable, Socket, Plug-In
Power900mW
Quick Jump:
Technical Specifications
Omron LY2-DC12 technical specifications.
General
| Approvals | UL, CSA, VDE |
| Coil Current | 75mA |
| Coil Power | 900mW |
| Coil Resistance | 160R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 10A |
| Contact Material | Silver |
| Current Rating | 10A |
| Depth | 21.5mm |
| Height | 28mm |
| Lead Free | Lead Free |
| Length | 28mm |
| Life (Hours) | 500000Hour |
| Max Current Rating | 10A |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 125V |
| Mount | Socketable, Socket, Plug-In |
| Mounting Style | SOCKET |
| Operate Time | 25ms |
| Package Quantity | 1 |
| Packaging | Bulk |
| Power Consumption | 900mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| Release Time | 25ms |
| RoHS Compliant | Yes |
| Series | LY |
| Termination | Quick Connect |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 125V |
| Width | 21.59mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron LY2-DC12 Datasheet
Download the complete datasheet for Omron LY2-DC12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
