DPDT General Purpose Electromechanical Relay with a 10A contact current rating and Silver contacts. Features a 12V DC non-latching coil with 75mA coil current, 900mW coil power, and 160 Ohm coil resistance. Rated for 250V AC and 125V DC, with a mechanical life of 500,000 hours. Operates within a temperature range of -25°C to 55°C, with 25ms operate and release times. Mountable via flanges, chassis, socket, or surface mount with quick connect termination. RoHS compliant.
Current Rating10A
MountingFlanges, Chassis Mount, Socket, Surface Mount
Power900mW
Quick Jump:
Technical Specifications
Omron LY2F-DC12 technical specifications.
General
| Approvals | UL, CSA, VDE |
| Coil Current | 75mA |
| Coil Power | 900mW |
| Coil Resistance | 160R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 10A |
| Contact Material | Silver |
| Current Rating | 10A |
| Depth | 22.5mm |
| Height | 35.56mm |
| Lead Free | Lead Free |
| Length | 44mm |
| Life (Hours) | 500000Hour |
| Max Current Rating | 10A |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 125V |
| Mount | Flanges, Chassis Mount, Socket, Surface Mount |
| Operate Time | 25ms |
| Package Quantity | 1 |
| Packaging | Bulk |
| Power Consumption | 900mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| Release Time | 25ms |
| RoHS Compliant | Yes |
| Series | LY |
| Termination | Quick Connect |
| Throw Configuration | DPDT |
| Type | Electromechanical |
| Voltage Rating (AC) | 250V |
| Width | 22.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron LY2F-DC12 Datasheet
Download the complete datasheet for Omron LY2F-DC12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

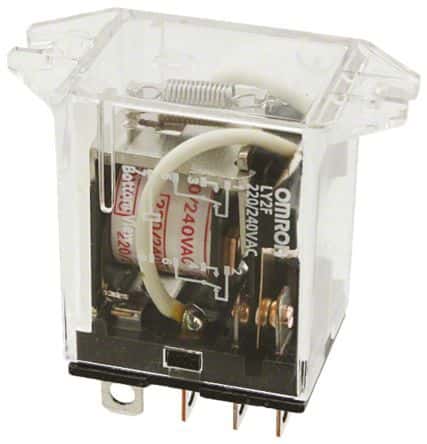

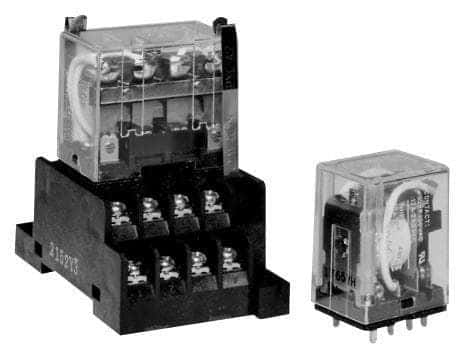

Product Images
