General purpose power relay featuring a 24V DC coil with 36.9mA current and 900mW power consumption. DPDT contact configuration offers 10A current rating with silver contact material. Operates within -25°C to 55°C, with 25ms operate and release times. Mounting options include flanges, chassis, socket, and surface mount. Approvals include UL, CSA, and VDE.
Current Rating10A
MountingFlanges, Chassis Mount, Socket, Surface Mount
Power900mW
Quick Jump:
Technical Specifications
Omron LY2F-DC24 technical specifications.
General
| Approvals | UL, CSA, VDE |
| Coil Current | 36.9mA |
| Coil Power | 900mW |
| Coil Resistance | 650R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 10A |
| Contact Material | Silver |
| Current Rating | 10A |
| Depth | 22.5mm |
| Height | 35.56mm |
| Lead Free | Lead Free |
| Length | 44mm |
| Life (Hours) | 500000Hour |
| Max Current Rating | 10A |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 125V |
| Mount | Flanges, Chassis Mount, Socket, Surface Mount |
| Number of Contacts | 2 |
| Operate Time | 25ms |
| Package Quantity | 1 |
| Packaging | Bulk |
| Power Consumption | 900mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| Release Time | 25ms |
| RoHS Compliant | No |
| Series | LY |
| Termination | Quick Connect |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 125V |
| Width | 22.6mm |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Omron LY2F-DC24 Datasheet
Download the complete datasheet for Omron LY2F-DC24 to view detailed technical specifications.
No datasheet is available for this part.

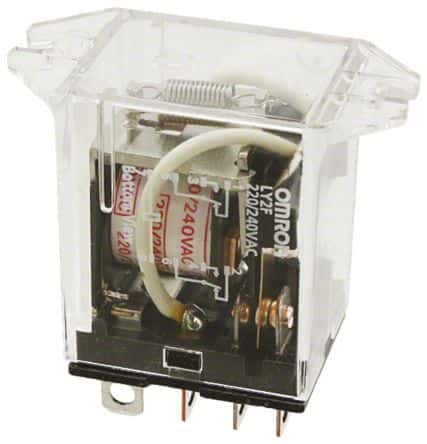

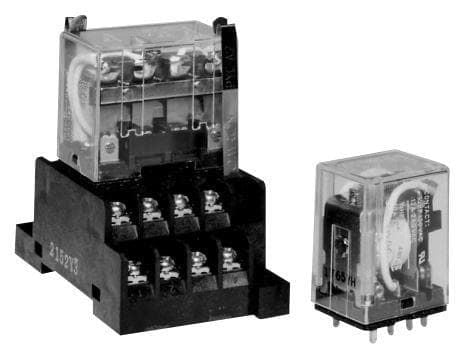

Product Images
