DPDT General Purpose Power Relay with a 10A contact current rating and Silver contact material. Features a 24V DC non-latching coil with 36.9mA coil current, 900mW coil power, and 650 Ohm coil resistance. Offers a 250V AC and 125V DC maximum voltage rating. Socketable mounting with Quick Connect termination. Operates within a -25°C to 55°C temperature range and boasts a 500,000-hour electrical life.
Current Rating10A
MountingSocketable, Plug-In, Socket
Power900mW
Quick Jump:
Technical Specifications
Omron LY2N-DC24 technical specifications.
General
Coil Current
36.9mA
Coil Power
900mW
Coil Resistance
650R
Coil Type
Non-Latching
Coil Voltage (DC)
24V
Contact Current Rating
10A
Contact Material
Silver
Current Rating
10A
Depth
21.5mm
Height
36.06mm
Lead Free
Lead Free
Length
28mm
Life (Hours)
500000Hour
Max Current Rating
10A
Max Operating Temperature
55°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
125V
Mount
Socketable, Plug-In, Socket
Mounting Style
SOCKET
Operate Time
25ms
Package Quantity
1
Packaging
Tray
Power Consumption
900mW
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Relay Type
General Purpose
Release Time
25ms
RoHS Compliant
Yes
Series
LY
Termination
Quick Connect
Throw Configuration
DPDT
Voltage Rating (AC)
250V
DC Rated Voltage
125V
Width
27.94mm
Compliance
RoHS
Compliant
Datasheet
Omron LY2N-DC24 Datasheet
Download the complete datasheet for Omron LY2N-DC24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

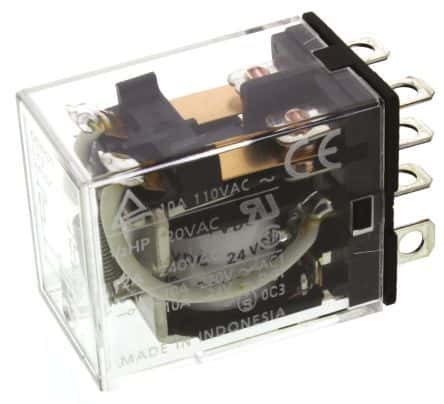

Product Images
