General purpose power relay featuring a 3PDT (Triple Pole Double Throw) configuration and a 10A contact current rating. This non-latching relay operates with a 24V DC coil, drawing 58.6mA and consuming 1.4W of power. It offers a 250V AC or 125V DC maximum voltage rating and a contact material of silver. Designed for socketable mounting, it has an operate and release time of 25ms and a mechanical life of 200,000 hours.
Current Rating10A
MountingSocketable, Socket, Plug-In
Power1.4W
Quick Jump:
Technical Specifications
Omron LY3-DC24 technical specifications.
General
| Approvals | UL, CSA, VDE |
| Coil Current | 58.6mA |
| Coil Power | 1.4W |
| Coil Resistance | 410R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 10A |
| Contact Material | Silver |
| Current Rating | 10A |
| Depth | 31.5mm |
| Height | 36.57mm |
| Lead Free | Lead Free |
| Length | 27.94mm |
| Life (Hours) | 200000Hour |
| Max Current Rating | 10A |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 125V |
| Mount | Socketable, Socket, Plug-In |
| Mounting Style | SOCKET |
| Operate Time | 25ms |
| Package Quantity | 1 |
| Packaging | Bulk |
| Power Consumption | 1.4W |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| Release Time | 25ms |
| RoHS Compliant | No |
| Series | LY |
| Termination | Quick Connect |
| Throw Configuration | 3PDT |
| Voltage Rating (AC) | 250V |
| Width | 27.94mm |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Omron LY3-DC24 Datasheet
Download the complete datasheet for Omron LY3-DC24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

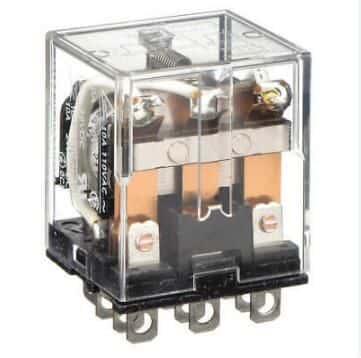

Product Images
