Technical Specifications
Omron LY3NDC48 technical specifications.
General
| Coil Current | 28.2mA |
| Coil Power | 1.4W |
| Coil Resistance | 1.7kR |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 48V |
| Contact Current Rating | 10A |
| Contact Material | Silver |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Mount | Socketable |
| Operate Time | 25ms |
| Package Quantity | 1 |
| Packaging | Bulk |
| Power Consumption | 1.4W |
| Relay Type | General Purpose |
| Release Time | 25ms |
| RoHS Compliant | Yes |
| Series | LY |
| Termination | Plug |
| Throw Configuration | 3PDT |
Compliance
| RoHS | Compliant |
Datasheet
Omron LY3NDC48 Datasheet
Download the complete datasheet for Omron LY3NDC48 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

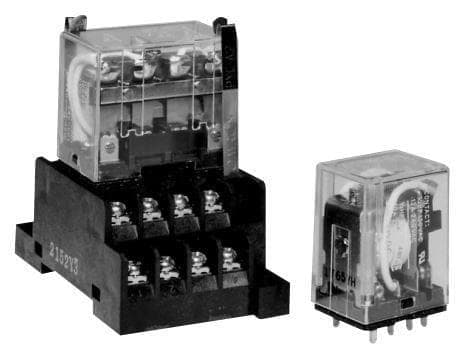

Product Images
