General purpose power relay featuring a 4PDT (4 Form C) contact configuration. Rated for 10A contact current and 250VAC/125VDC maximum voltage. Operates with a 220VAC coil voltage, drawing 11.2mA with a 6.7kΩ coil resistance. Silver contact material ensures reliable switching. Designed for socket mounting with quick connect termination, operating within a -25°C to +40°C temperature range.
Package200
MountingSocket
Quick Jump:
Technical Specifications
Omron LY4N-AC200/220 technical specifications.
General
| Package/Case | 200 |
| Coil Current | 11.2mA |
| Coil Resistance | 6.7kR |
| Coil Type | Non-Latching |
| Coil Voltage (AC) | 220V |
| Contact Current Rating | 10A |
| Contact Material | Silver |
| Depth | 41.5mm |
| Lead Free | Lead Free |
| Length | 28mm |
| Max Current Rating | 10A |
| Max Operating Temperature | 40°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 125V |
| Mount | Socket |
| Mounting Style | SOCKET |
| Operate Time | 25ms |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Relay Type | General Purpose |
| RoHS Compliant | Yes |
| Series | LY |
| Termination | Quick Connect |
| Throw Configuration | 4PDT |
| Voltage Rating (AC) | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Omron LY4N-AC200/220 Datasheet
Download the complete datasheet for Omron LY4N-AC200/220 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

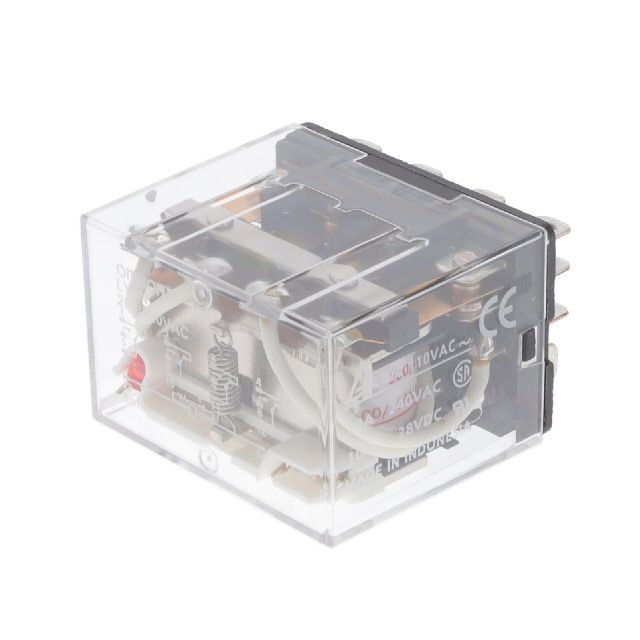

Product Images
