General purpose power relay featuring a 4PDT (4 Pole Double Throw) configuration and a 10A contact current rating. This socketable, plug-in relay operates with a 24VAC coil voltage, drawing 80mA with 2.5W coil power and 78 Ohms coil resistance. It offers a 250VAC or 125VDC maximum voltage rating and a contact material of silver. Approvals include UL, CSA, and VDE, with a RoHS compliant and lead-free design.
Current Rating10A
MountingSocketable, Socket, Plug-In
Quick Jump:
Technical Specifications
Omron LY4N-AC24 technical specifications.
General
Approvals
UL, CSA, VDE
Coil Current
80mA
Coil Power
2.5W
Coil Resistance
78R
Coil Type
Non-Latching
Coil Voltage (AC)
24V
Contact Current Rating
10A
Contact Material
Silver
Current Rating
10A
Depth
41.5mm
Height
28mm
Lead Free
Lead Free
Length
28mm
Life (Hours)
200000Hour
Max Current Rating
10A
Max Operating Temperature
40°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
125V
Mount
Socketable, Socket, Plug-In
Mounting Style
SOCKET
Operate Time
25ms
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Relay Type
General Purpose
Release Time
25ms
RoHS Compliant
Yes
Series
LY
Termination
Plug
Throw Configuration
4PDT
Voltage Rating (AC)
250V
Compliance
RoHS
Compliant
Datasheet
Omron LY4N-AC24 Datasheet
Download the complete datasheet for Omron LY4N-AC24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

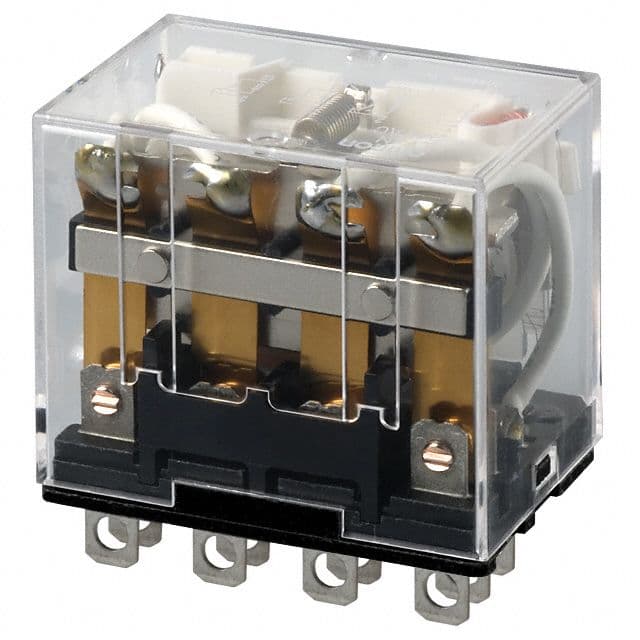

Product Images
