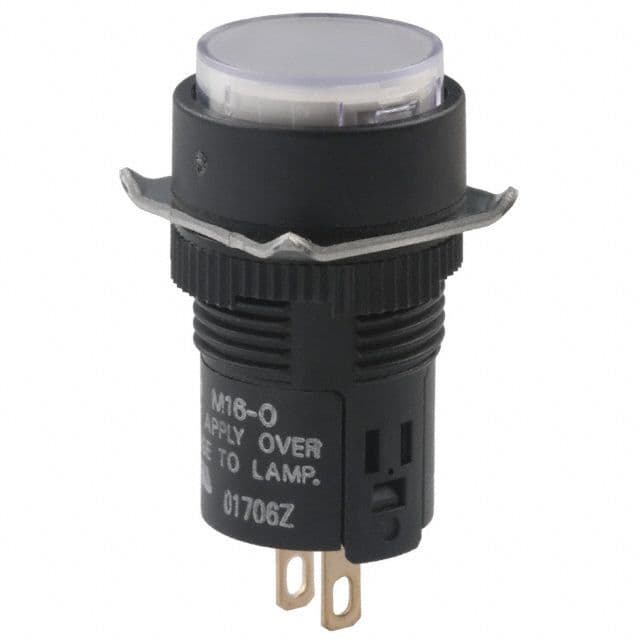

24V DC LED Panel Indicator with a white diffused round, flat lens. Features a 10mA contact current rating and 8mA current draw. This panel-mount indicator has an 18mm diameter and a 1.488-inch height, with quick connect termination. It is RoHS compliant, lead-free, and rated IP65, operating between -10°C and 55°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron M165-TW-24D datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron M165-TW-24D technical specifications.
| Approvals | UL |
| Color | White |
| Contact Current Rating | 10mA |
| Current | 8mA |
| Current Rating | 10mA |
| Diameter | 18mm |
| Height | 1.488inch |
| Lead Free | Lead Free |
| Lens Color | White |
| Lens Size | 15.1mm |
| Lens Style | Round, Flat |
| Lens Transparency | Diffused |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -10°C |
| Mount | Panel |
| Nominal Supply Voltage (DC) | 24V |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | IP65 |
| RoHS Compliant | Yes |
| Series | M16 |
| Termination | Quick Connect |
| Voltage | 24V |
| Voltage Rating (AC) | 24V |
| RoHS | Compliant |
