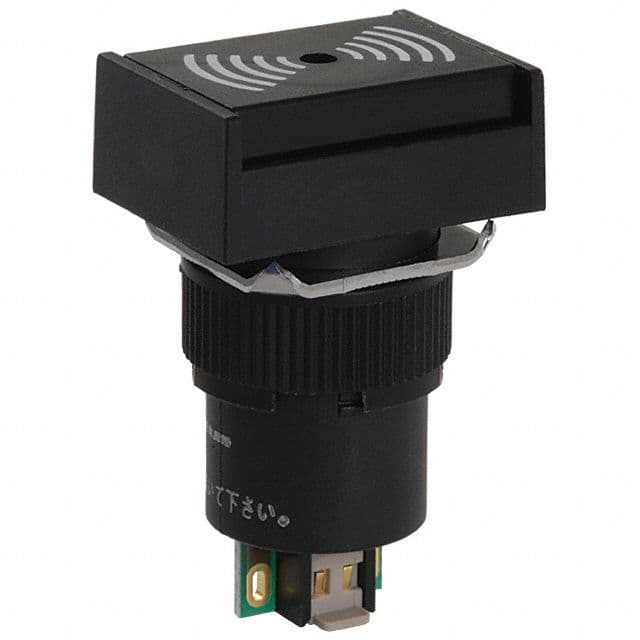

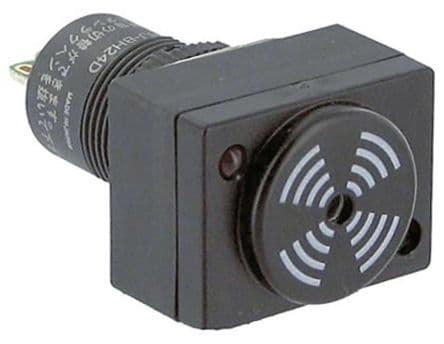

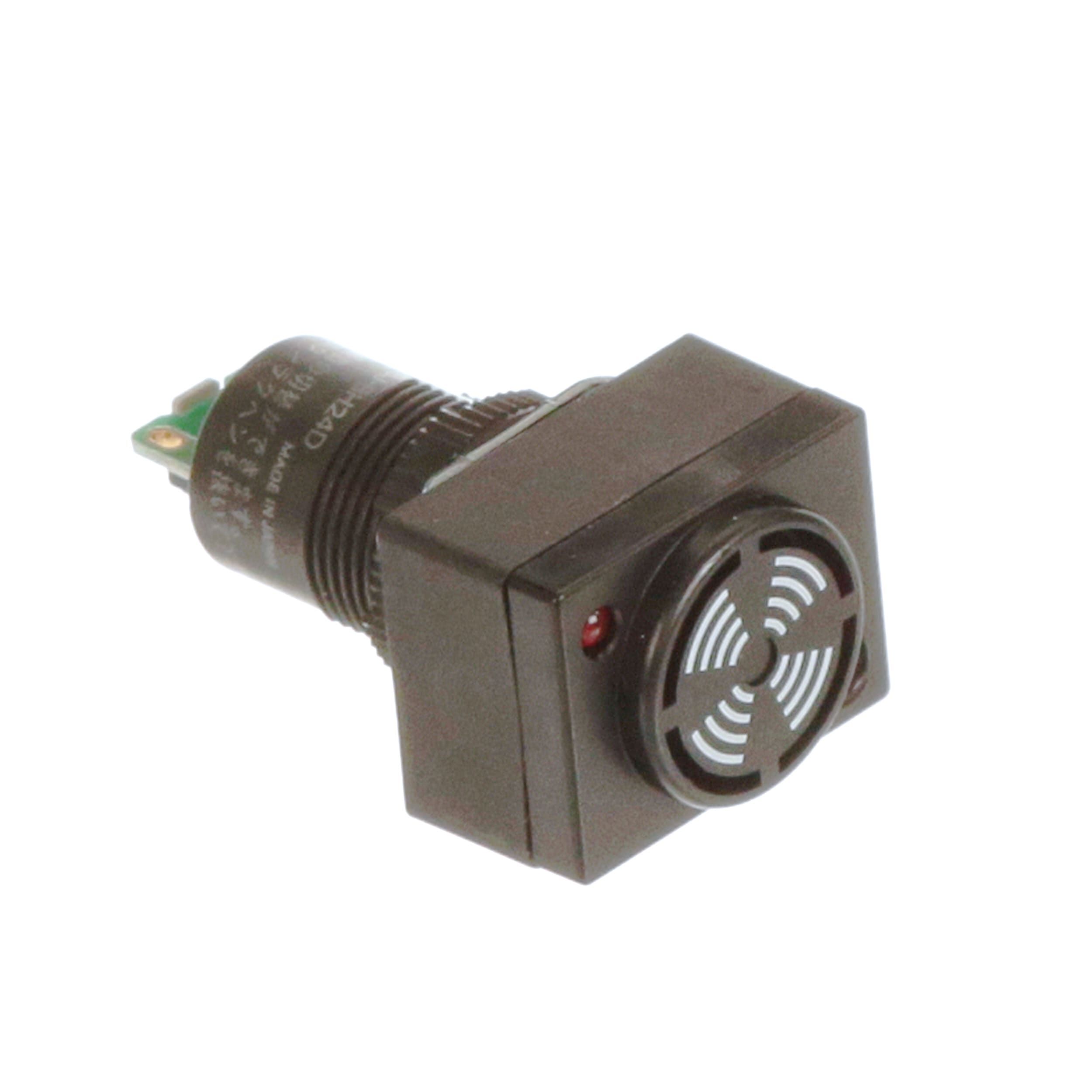

Panel mount buzzer with 24V AC operating supply voltage and 100mA operating supply current. Features a 16mm diameter, 44.5mm height, and 22mm length, with a 26mm width. Operates within a temperature range of -10°C to 55°C and offers IP40 protection. Termination is solder, and it is lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron M2BJ-BH24D datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron M2BJ-BH24D technical specifications.
| Diameter | 16mm |
| Frequency | 3kHz |
| Height | 44.5mm |
| Lead Free | Lead Free |
| Length | 22mm |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -10°C |
| Mount | Flush, Panel |
| Operating Supply Current | 100mA |
| Operating Supply Voltage | 24V |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP40 |
| Series | M2BJ |
| Termination | Solder |
| Voltage Rating (AC) | 24V |
| Washable | No |
| Width | 26mm |
| RoHS | Compliant |
