General purpose SPDT power relay with a 10A contact current rating and silver contact material. Features a 120V AC non-latching coil with 14.2mA current and 2.25kR resistance. Offers a 600V AC maximum voltage rating and 28V DC maximum voltage rating. Operates within a -45°C to 60°C temperature range with 20ms operate time and 10ms release time. Socketable mounting with quick connect termination.
MountingSocketable, Socket
Quick Jump:
Technical Specifications
Omron MJN1C-N-AC120 technical specifications.
General
Coil Current
14.2mA
Coil Resistance
2.25kR
Coil Type
Non-Latching
Coil Voltage (AC)
120V
Contact Current Rating
10A
Contact Material
Silver
Depth
35.56mm
Length
38.73mm
Max Current Rating
10A
Max Operating Temperature
60°C
Min Operating Temperature
-45°C
Max Voltage Rating (AC)
600V
Max Voltage Rating (DC)
28V
Mount
Socketable, Socket
Mounting Style
SOCKET
Operate Time
20ms
Package Quantity
1
Packaging
Bulk
Relay Type
General Purpose
Release Time
10ms
RoHS Compliant
No
Series
MJN
Termination
Quick Connect
Throw Configuration
SPDT
Voltage Rating (AC)
600V
Compliance
RoHS
Not Compliant
Datasheet
Omron MJN1C-N-AC120 Datasheet
Download the complete datasheet for Omron MJN1C-N-AC120 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

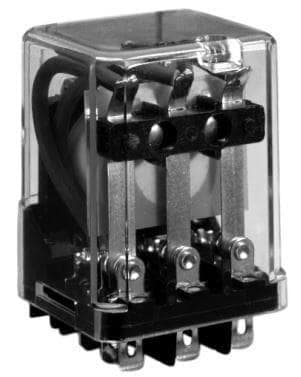

Product Images
