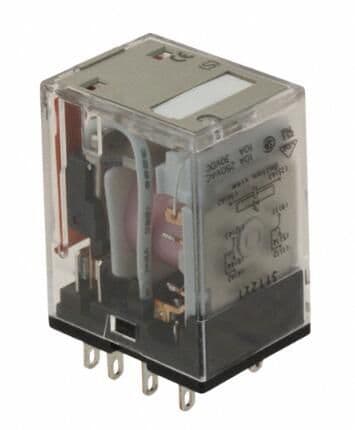

General purpose SPDT power relay featuring a 24V AC coil with 71mA coil current and 75 Ohm coil resistance. Offers a 10A contact current rating with silver contact material and a 600V AC maximum voltage rating, alongside a 28V DC maximum voltage rating. This non-latching relay has a 20ms operate time and 10ms release time, with a socketable mounting style and quick connect termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron MJN1C-N-AC24 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Coil Current | 71mA |
| Coil Resistance | 75R |
| Coil Type | Non-Latching |
| Coil Voltage (AC) | 24V |
| Contact Current Rating | 10A |
| Contact Material | Silver |
| Depth | 35.56mm |
| Length | 38.73mm |
| Max Current Rating | 10A |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -45°C |
| Max Voltage Rating (AC) | 600V |
| Max Voltage Rating (DC) | 28V |
| Mount | Socketable, Socket |
| Mounting Style | SOCKET |
| Operate Time | 20ms |
| Package Quantity | 1 |
| Packaging | Bulk |
| Relay Type | General Purpose |
| Release Time | 10ms |
| RoHS Compliant | No |
| Series | MJN |
| Termination | Quick Connect |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 600V |
| RoHS | Not Compliant |
