DPDT general purpose power relay with a 10A contact current rating and silver contact material. Features a 24VAC coil voltage, 88mA coil current, and 68Ω coil resistance. Operates within a temperature range of -10°C to 40°C, with 20ms operate and release times. Designed for socket mounting with plug termination, offering 250VAC/250VDC maximum voltage ratings.
Current Rating10A
MountingSocketable, Socket
Quick Jump:
Technical Specifications
Omron MK2PSAC24 technical specifications.
General
Coil Current
88mA
Coil Resistance
68R
Coil Type
Non-Latching
Coil Voltage (AC)
24V
Contact Current Rating
10A
Contact Material
Silver
Current Rating
10A
Height
52.5mm
Lead Free
Lead Free
Length
34.5mm
Max Current Rating
10A
Max Operating Temperature
40°C
Min Operating Temperature
-10°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
250V
Mount
Socketable, Socket
Mounting Style
SOCKET
Operate Time
20ms
Package Quantity
20
Packaging
Bulk
Radiation Hardening
No
Relay Type
General Purpose
Release Time
20ms
Series
MK
Termination
Plug
Throw Configuration
DPDT
Width
34.5mm
Compliance
RoHS
Compliant
Datasheet
Omron MK2PSAC24 Datasheet
Download the complete datasheet for Omron MK2PSAC24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

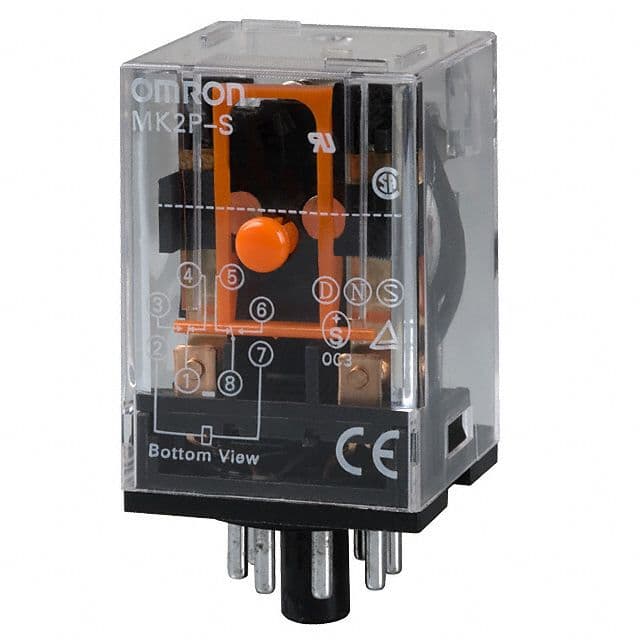

Product Images
