DPDT power relay with a 10A contact current rating and 250VAC/DC voltage rating. Features a 240VAC coil voltage, 9.6mA coil current, and 2.7W coil power. Designed for general purpose applications with a plug-in termination and socket mount. Offers a contact material of tin/silver and a mechanical life of 100,000 hours. Approvals include UL, CSA, TUV, and IEC, with RoHS compliance.
Current Rating10A
MountingSocket, Plug-In
Quick Jump:
Technical Specifications
Omron MKS2PI AC240 technical specifications.
General
Application(s)
GENERAL PURPOSE
Approvals
UL, CSA, TUV, IEC
Coil Current
9.6mA
Coil Power
2.7W
Coil Resistance
4.48kR
Coil Voltage (AC)
240V
Contact Current Rating
10A
Contact Material
Tin, Silver
Current Rating
10A
Depth
53.3mm
Height
52.5mm
Length
34.5mm
Life (Hours)
100000Hour
Max Current Rating
10A
Max Operating Temperature
60°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
250V
Mount
Socket, Plug-In
Number of Poles
2
Relay Type
General Purpose
RoHS Compliant
Yes
Termination
Plug
Throw Configuration
DPDT
Voltage Rating (AC)
250V
Width
34.5mm
Compliance
RoHS
Compliant
Datasheet
Omron MKS2PI AC240 Datasheet
Download the complete datasheet for Omron MKS2PI AC240 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

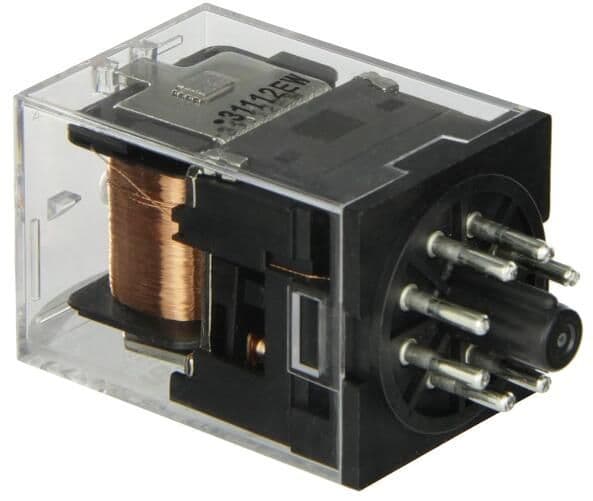

Product Images
