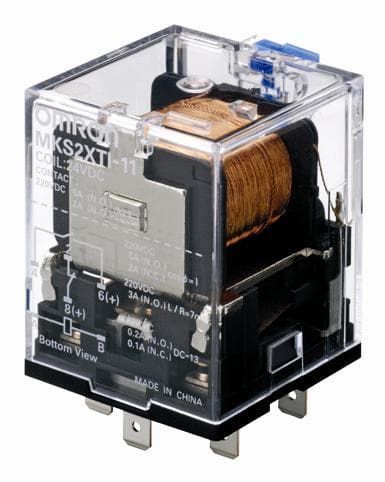

The MKS2XT-11DC110 is a general purpose relay with a non-latching coil and a contact current rating of 5A. It operates within a temperature range of -40°C to 60°C and consumes 1.5W of power. The relay is available in a socketable package with a plug termination and a throw configuration of SPST and DPST. It is compliant with RoHS regulations and is packaged in bulk.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron MKS2XT-11DC110 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Coil Current | 13.6mA |
| Coil Power | 1.5W |
| Coil Resistance | 8.06kR |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 110V |
| Contact Current Rating | 5A |
| Contact Material | Tin, Silver |
| Height | 44mm |
| Length | 34.5mm |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -40°C |
| Mount | Socketable |
| Operate Time | 30ms |
| Package Quantity | 1 |
| Packaging | Bulk |
| Power Consumption | 1.5W |
| Relay Type | General Purpose |
| Release Time | 20ms |
| RoHS Compliant | Yes |
| Series | MKS-X |
| Termination | Plug |
| Throw Configuration | SPST, DPST |
| Width | 34.5mm |
| RoHS | Compliant |
