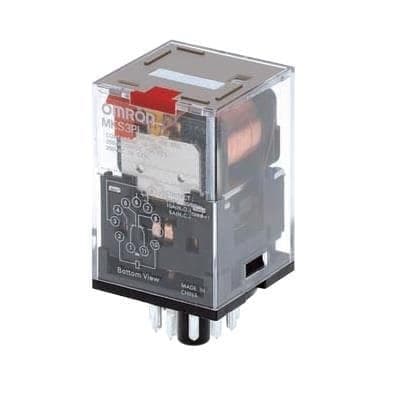

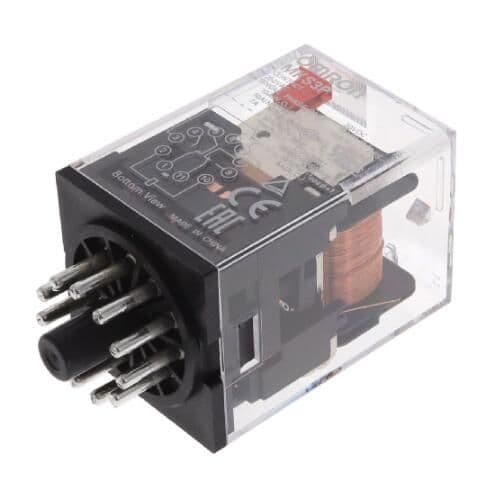

The MKS3PAC110 is a 3PDT general purpose power relay with a non-latching coil type and a maximum operating temperature of 60°C. It has a contact current rating of 10A and is RoHS compliant. The relay is socketable and available in bulk packaging. It has a operate time and release time of 20ms each.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron MKS3PAC110 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Coil Current | 21mA |
| Coil Resistance | 932R |
| Coil Type | Non-Latching |
| Coil Voltage (AC) | 110V |
| Contact Current Rating | 10A |
| Contact Material | Tin, Silver |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -40°C |
| Mount | Socketable |
| Operate Time | 20ms |
| Package Quantity | 1 |
| Packaging | Bulk |
| Relay Type | General Purpose |
| Release Time | 20ms |
| RoHS Compliant | Yes |
| Series | MKS |
| Termination | Plug |
| Throw Configuration | 3PDT |
| RoHS | Compliant |
Download the complete datasheet for Omron MKS3PAC110 to view detailed technical specifications.
