General purpose power relay featuring a 3PDT (Triple Pole Double Throw) configuration and a 10A contact current rating. Operates with a 24V DC coil voltage, 55.8mA coil current, and 430Ω coil resistance, consuming 1.4W. Offers a 250V AC/DC maximum voltage rating and a 10A switching current. Mountable via socket or PCB, with dimensions of 34.5mm (L) x 34.5mm (W) x 52.5mm (H). Approvals include UL, CSA, TUV, and IEC, with a temperature range of -40°C to 60°C.
Current Rating10A
MountingSocketable, PCB, Socket, Plug-In
Power1.4W
Quick Jump:
Technical Specifications
Omron MKS3PI-5 DC24 technical specifications.
General
| Application(s) | GENERAL PURPOSE |
| Approvals | UL, CSA, TUV, IEC |
| Coil Current | 55.8mA |
| Coil Resistance | 430R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 10A |
| Contact Material | Silver, Tin |
| Current Rating | 10A |
| Depth | 34.5mm |
| Height | 52.5mm |
| Length | 34.5mm |
| Max Current Rating | 10A |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 250V |
| Mount | Socketable, PCB, Socket, Plug-In |
| Mounting Style | SOCKET |
| Operate Time | 30ms |
| Package Quantity | 1 |
| Packaging | Bulk |
| Power Consumption | 1.4W |
| Ratings | IP40 |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| Release Time | 20ms |
| RoHS Compliant | Yes |
| Series | MKS |
| Switching Current | 10A |
| Termination | Plug |
| Throw Configuration | 3PDT |
| Voltage Rating (AC) | 250V |
| Width | 34.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron MKS3PI-5 DC24 Datasheet
Download the complete datasheet for Omron MKS3PI-5 DC24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

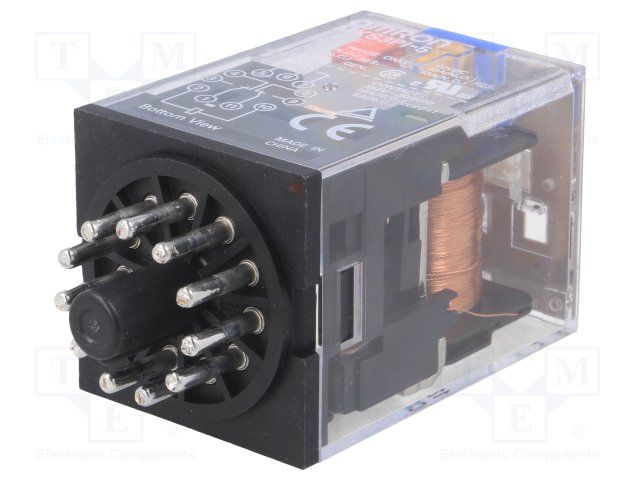

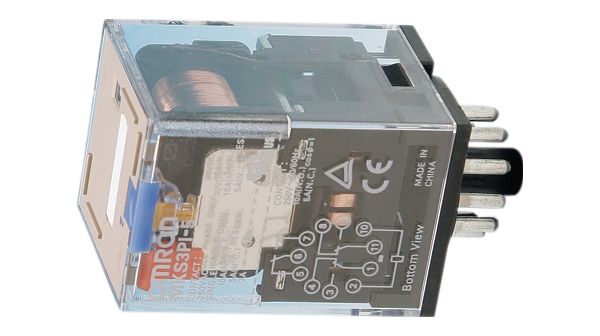

Product Images
