3PDT electromechanical power relay with a 10A contact current rating and 250VAC/250VDC voltage rating. Features a 12VDC coil with 1.4W power consumption and 107 Ohm resistance. Designed for general purpose applications, this socketable relay offers 30ms operate time and 20ms release time. Approved by UL, CSA, TUV, and IEC, with silver and tin contact material and IP40 protection.
Current Rating10A
MountingSocketable, PCB, Socket, Plug-In
Power1.4W
Quick Jump:
Technical Specifications
Omron MKS3PI-5DC12 technical specifications.
General
| Application(s) | GENERAL PURPOSE |
| Approvals | UL, CSA, TUV, IEC |
| Coil Current | 112mA |
| Coil Power | 1.4W |
| Coil Resistance | 107R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 10A |
| Contact Material | Silver, Tin |
| Current Rating | 10A |
| Depth | 34.5mm |
| Height | 52.5mm |
| Length | 34.5mm |
| Max Current Rating | 10A |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 250V |
| Mount | Socketable, PCB, Socket, Plug-In |
| Mounting Style | SOCKET |
| Operate Time | 30ms |
| Package Quantity | 1 |
| Packaging | Bulk |
| Power Consumption | 1.4W |
| Ratings | IP40 |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| Release Time | 20ms |
| RoHS Compliant | Yes |
| Series | MKS |
| Switching Current | 10A |
| Termination | Plug |
| Throw Configuration | 3PDT |
| Voltage Rating (AC) | 250V |
| Width | 34.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron MKS3PI-5DC12 Datasheet
Download the complete datasheet for Omron MKS3PI-5DC12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

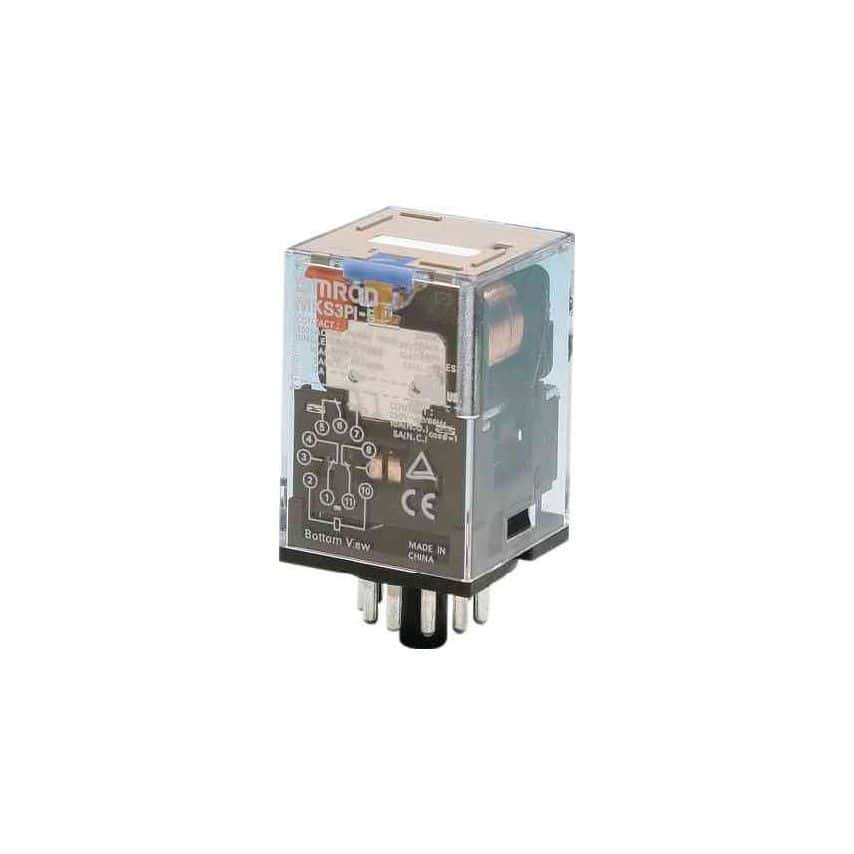

Product Images
