General purpose power relay featuring a 3PDT (Triple Pole Double Throw) contact configuration and a 24VDC coil. This socketable relay offers a 10A contact current rating with silver/tin contacts and a maximum AC/DC voltage rating of 250V. It operates within a temperature range of -25°C to 60°C and includes a lock button and LED indicator. Approvals include UL, CSA, TUV, and IEC.
Current Rating10A
MountingSocketable, PCB, Socket, Plug-In
Power1.4W
Quick Jump:
Technical Specifications
Omron MKS3PIN-5DC24 technical specifications.
General
| Application(s) | GENERAL PURPOSE |
| Approvals | UL, CSA, TUV, IEC |
| Coil Current | 55.8mA |
| Coil Power | 1.4W |
| Coil Resistance | 430R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 10A |
| Contact Material | Silver, Tin |
| Current Rating | 10A |
| Depth | 34.5mm |
| Height | 52.5mm |
| Length | 34.5mm |
| Max Current Rating | 10A |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 250V |
| Mount | Socketable, PCB, Socket, Plug-In |
| Mounting Style | SOCKET |
| Operate Time | 30ms |
| Package Quantity | 1 |
| Packaging | Bulk |
| Power Consumption | 1.4W |
| Ratings | IP40 |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| Release Time | 20ms |
| RoHS Compliant | Yes |
| Series | MKS |
| Switching Current | 10A |
| Termination | Plug |
| Throw Configuration | 3PDT |
| Voltage Rating (AC) | 250V |
| Width | 34.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron MKS3PIN-5DC24 Datasheet
Download the complete datasheet for Omron MKS3PIN-5DC24 to view detailed technical specifications.
No datasheet is available for this part.

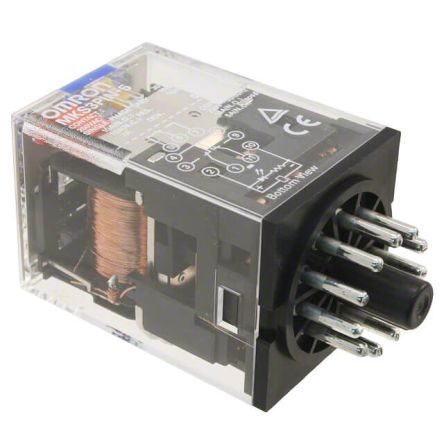

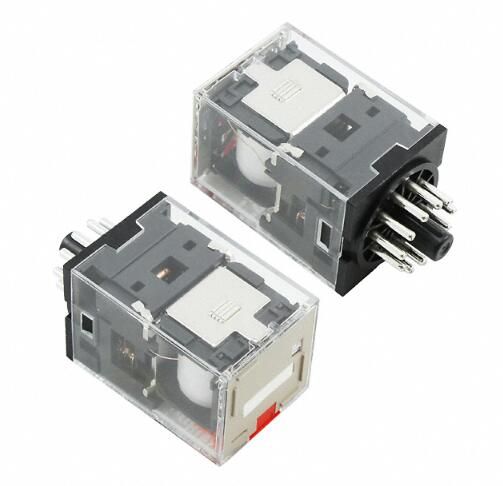

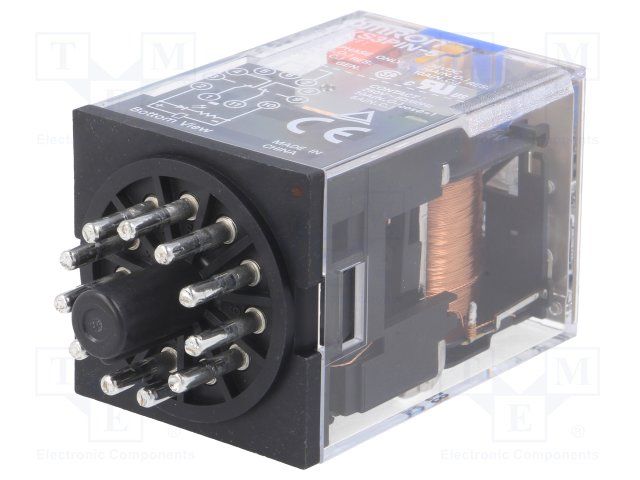

Product Images
