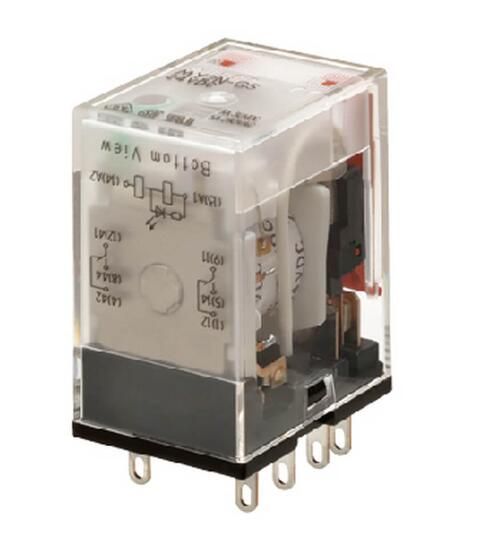

DPDT power relay with a 10A contact current rating and 250VAC/125VDC maximum voltage rating. Features a 24VAC coil voltage, 180 Ohm coil resistance, and 46mA coil current. This socketable relay offers a 20ms operate and release time, silver contact material, and a mechanical life of 500,000 hours. Approved by UL, CSA, and VDE for general purpose applications. Dimensions are 28mm (length) x 21.5mm (width) x 36mm (height).
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron MY2IN AC24 (S) datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron MY2IN AC24 (S) technical specifications.
| Application(s) | GENERAL PURPOSE |
| Approvals | UL, CSA, VDE |
| Coil Current | 46mA |
| Coil Resistance | 180R |
| Coil Type | Non-Latching |
| Coil Voltage (AC) | 24V |
| Contact Current Rating | 10A |
| Contact Material | Silver |
| Current Rating | 10A |
| Depth | 21.5mm |
| Height | 36mm |
| Length | 28mm |
| Life (Hours) | 500000Hour |
| Max Current Rating | 10A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 125V |
| Mount | Socketable, Socket, Plug-In |
| Mounting Style | SOCKET |
| Operate Time | 20ms |
| Package Quantity | 1 |
| Packaging | Bulk |
| Relay Type | General Purpose |
| Release Time | 20ms |
| Series | MY |
| Termination | Plug |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 30V |
| Width | 21.5mm |
| RoHS | Compliant |
