General purpose power relay featuring a 3PDT (three pole, double throw) configuration with silver contacts rated for 5A. Operates with a 24V DC coil requiring 36.9mA and 900mW of power, exhibiting a coil resistance of 650 Ohms. Offers a 250V AC and 125V DC maximum voltage rating, with operate and release times of 20ms. Designed for through-hole mounting with PC pin termination, suitable for operating temperatures from -55°C to 60°C.
MountingThrough Hole
Quick Jump:
Technical Specifications
Omron MY3-02-DC24 technical specifications.
General
| Coil Current | 36.9mA |
| Coil Power | 900mW |
| Coil Resistance | 650R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 5A |
| Contact Material | Silver |
| Depth | 21.5mm |
| Length | 28mm |
| Max Current Rating | 5A |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 125V |
| Mount | Through Hole |
| Operate Time | 20ms |
| Package Quantity | 1 |
| Packaging | Bulk |
| Relay Type | General Purpose |
| Release Time | 20ms |
| Series | MY |
| Termination | PC Pin |
| Throw Configuration | 3PDT |
| Voltage Rating (AC) | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Omron MY3-02-DC24 Datasheet
Download the complete datasheet for Omron MY3-02-DC24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

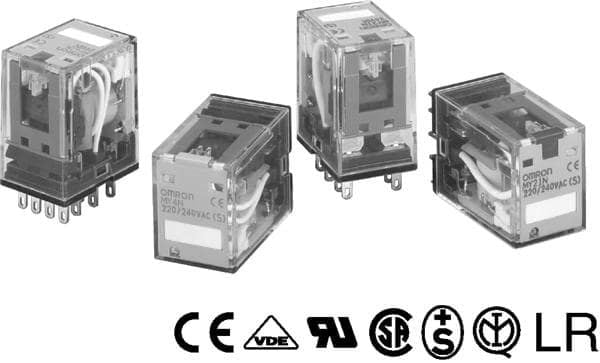

Product Images
