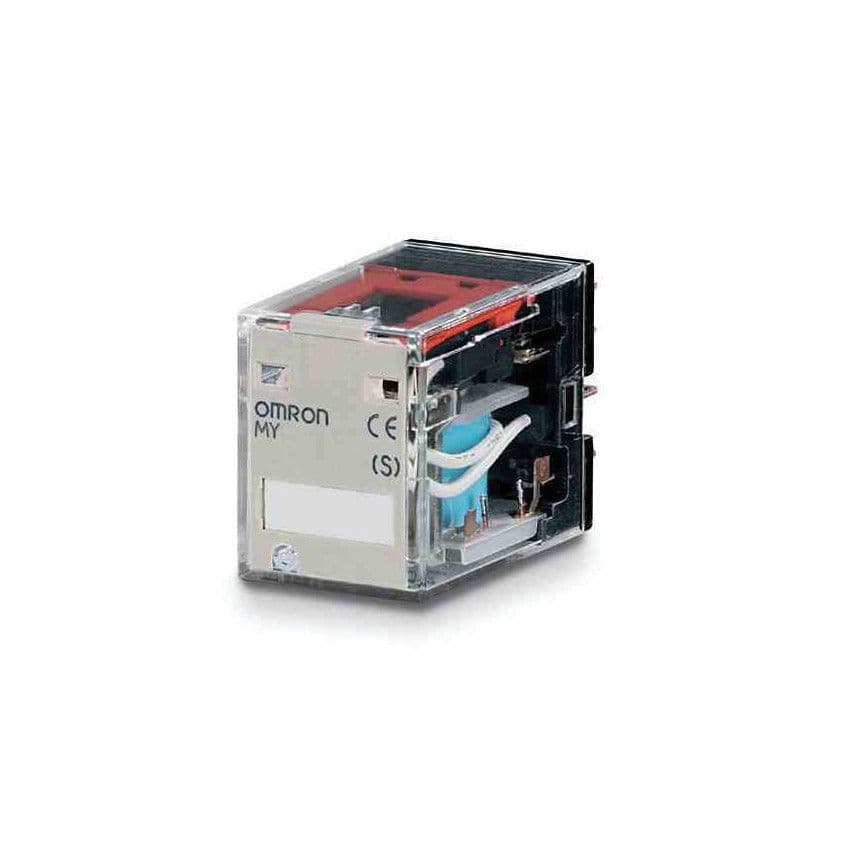

The MY412DC(S) relay from Omron is a general purpose electromechanical relay with a 4-pole configuration. It operates at a coil voltage of 12V and can handle a coil current of 75mA with a maximum coil power of 900mW. The relay has a contact current rating of 5A and is constructed with silver and gold contact material. It measures 28mm in length, 21.5mm in width, and 36mm in height, with a depth of 21.5mm. The MY412DC(S) relay has an operating temperature range of -55°C to 70°C and features a release time of 20ms.
Sign in to ask questions about the Omron MY412DC(S) datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron MY412DC(S) technical specifications.
| Application(s) | POWER |
| Coil Current | 75mA |
| Coil Power | 900mW |
| Coil Resistance | 160R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 5A |
| Contact Material | Silver, Gold |
| Depth | 21.5mm |
| Height | 36mm |
| Length | 28mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -55°C |
| Mount | Plug-In |
| Number of Poles | 4 |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| Release Time | 20ms |
| Series | MY |
| Termination | Plug |
| Width | 21.5mm |
| RoHS | Compliant |
