General purpose power relay featuring a 4PDT (4-pole, double-throw) configuration. Coil operates at 24V DC with 36.9mA current and 900mW power consumption, boasting a 650 Ohm resistance. Contact rating is 3A with silver contact material, suitable for AC voltages up to 250V and DC voltages up to 125V. Chassis mountable via sockets, this relay offers a 20ms operate and release time, with an operating temperature range of -55°C to 70°C.
MountingChassis Mount, Brackets
Power900mW
Quick Jump:
Technical Specifications
Omron MY4F-DC24 technical specifications.
General
| Coil Current | 36.9mA |
| Coil Power | 900mW |
| Coil Resistance | 650R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 3A |
| Contact Material | Silver |
| Height | 36.06mm |
| Length | 43.94mm |
| Max Current Rating | 3A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 125V |
| Mount | Chassis Mount, Brackets |
| Mounting Style | SOCKET |
| Operate Time | 20ms |
| Package Quantity | 1 |
| Packaging | Bulk |
| Power Consumption | 900mW |
| Relay Type | General Purpose |
| Release Time | 20ms |
| Series | MY |
| Termination | Solder |
| Throw Configuration | 4PDT |
| Width | 22.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron MY4F-DC24 Datasheet
Download the complete datasheet for Omron MY4F-DC24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

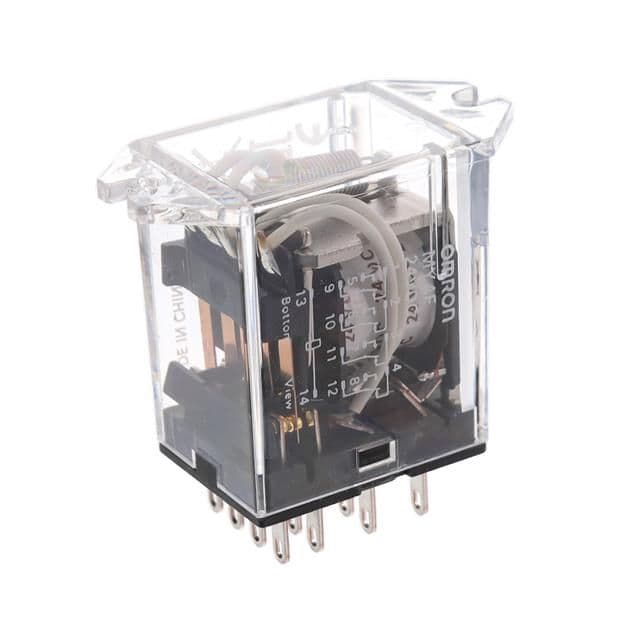

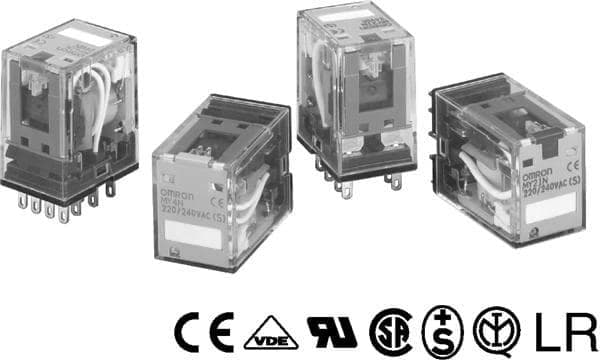

Product Images
